Step 4

Adapt single-pole switch

You can replace any traditional switch (also in a two-way or intermediate switching) with a connected dimmer.

Other switches without dim function

Identify the present connection diagram and mark the following wires with labels:

  • Phase conductor supplying 230 V
  • Wires that lead to the lamp

Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

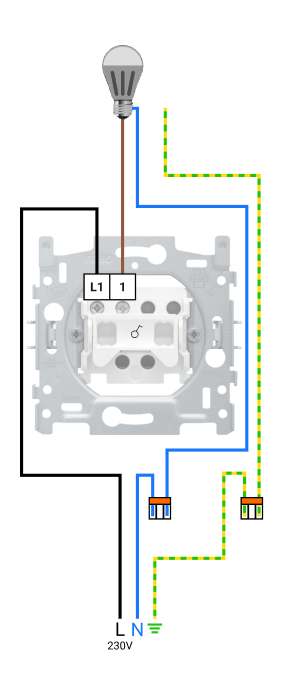

Current connection diagram



Other switches without dim function

Back to Switching switching

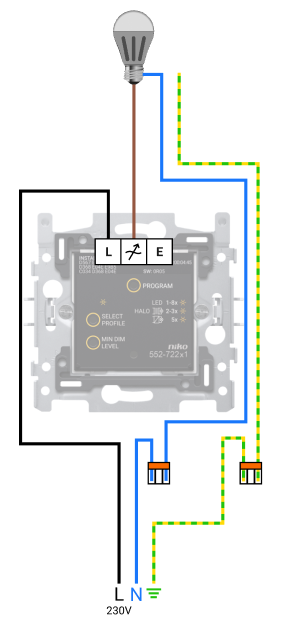

Niko Home Control connection diagram

Connect the connected dimmer.

The E-terminal can be left free, as this is only used in two-way or intermediate switching to connect traditional push buttons to the connected dimmer.
