Step 2

Adapt digital roll-down shutter switch

Identify the present connection diagram and mark the following wires with labels:

  • Phase conductor supplying 230 V
  • Wires that lead to the motor

Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

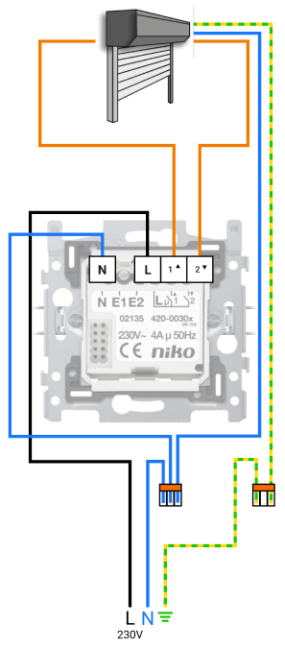

Current connection diagram



Go back to Identify the motor control

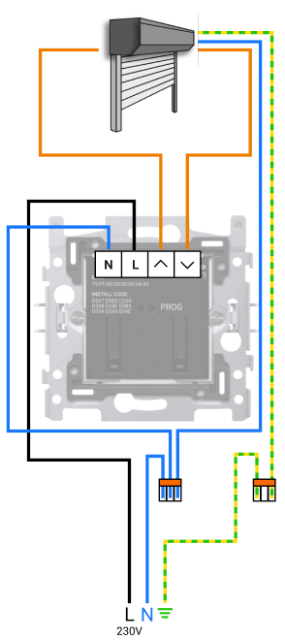

Niko Home Control connection diagram

Connect the connected motor control.

Note: You can only connect one motor to the connected motor control (unless other stated in the motor manual).
