Step 1

Identify the motor control

Identify the type of motor control. Then you know in the following step how to replace the traditional motor control with a connected motor control.

Note: Here is a list of the most popular Niko motor controls (in the range since 2006). These examples can also help you in replacing older motor controls or products with another brand. The surface-mount may well be different in that case and the connection terminals may be in another place.

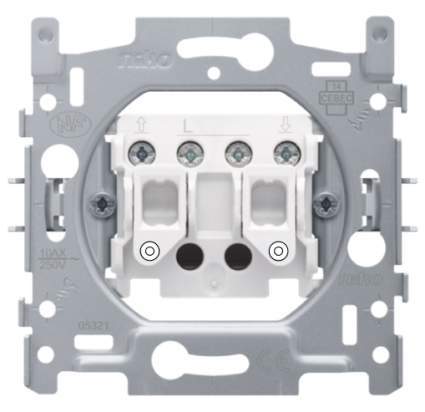

Double push button for roll-down shutters

Two buttons, three connection terminals on top

View connection diagram

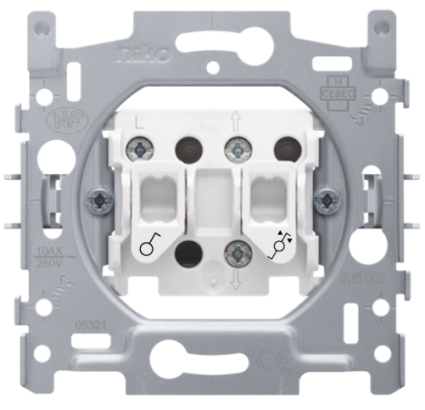

Double switch for roll-down shutters (electrically separated)

Two buttons (left start/stop, right rotation direction), two connection terminals on top, one connection terminal at the bottom

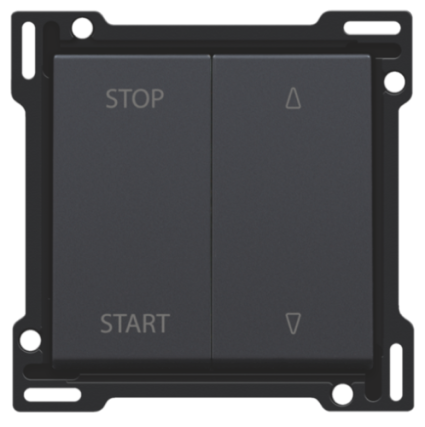

Example of finishing:





View connection diagram

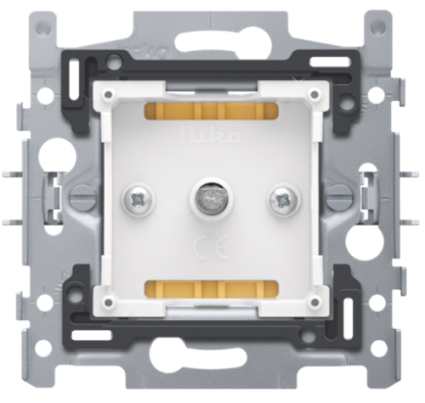

Rotary switch for roll-down shutters

Finishing with rotary button

View connection diagram

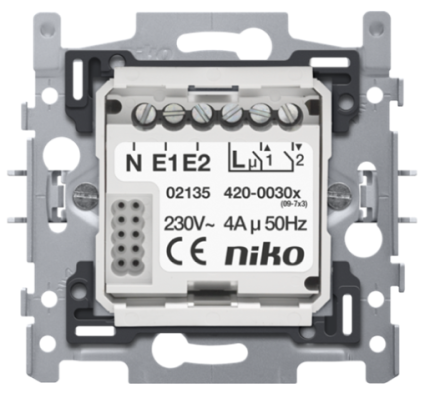

Digital roll-down shutter switch

Six connection terminals

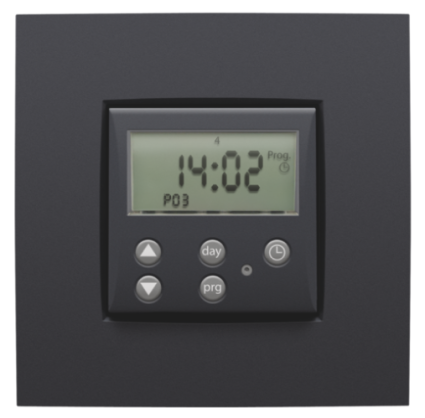

Example of finishing:



View connection diagram
