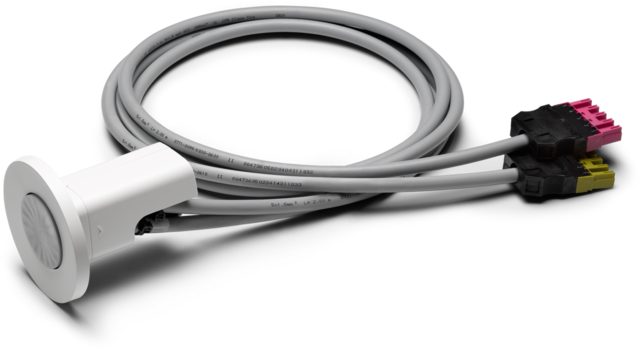

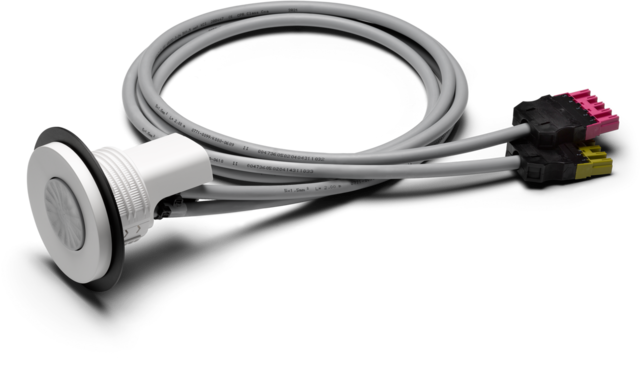

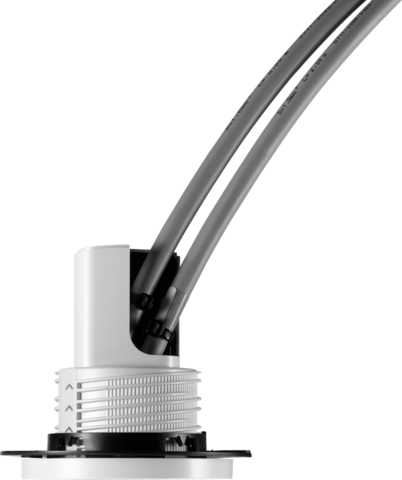

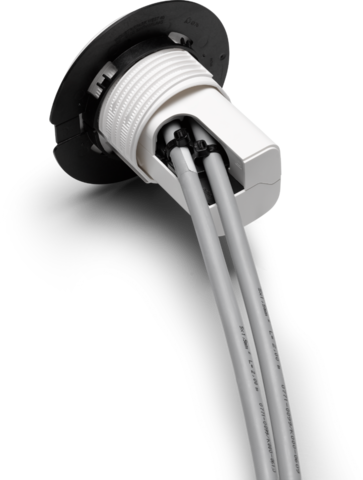

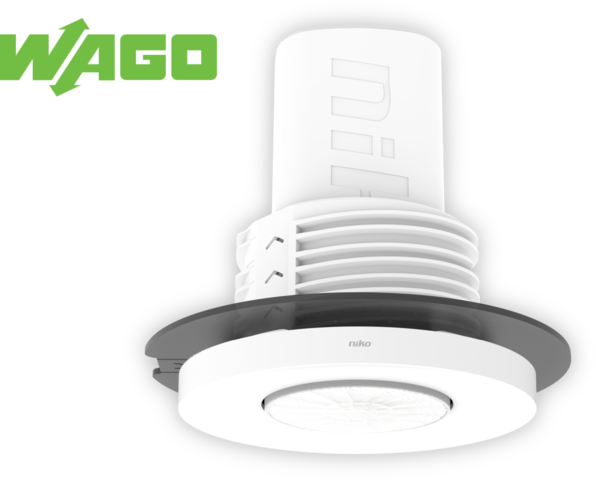

Presence detector P48MR, DALI-2, master, 12-13 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 x 2 m cable with 5-pol. connectors
This flat and discrete presence detector is a DALI-2 master for DALI lighting control in up to four zones. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. Moreover, the detector is prewired with cables and 5-pole female connectors that are each unique, which helps to avoid installation errors and save time.
Use the P48 detector’s internal relay in combination with a distribution box (353-7080X) to enable the following lighting control functions:
- HVAC control in combination with distribution box 353-70801 to accommodate the integration of HVAC systems
- Control of non-dimmable ON/OFF lighting with distribution box 353-70802
- Standby minimisation of luminaires in combination with distribution box 353-70803 to save energy
- Control of non-dimmable luminaires externally on the DALI-bus with distribution box 353-70806
The range can be extended with up to ten P46 DALI-2 secondary detectors with a 2 meter cable and a connector. Mind the maximum guaranteed current on the DALI-bus.
These solutions are mainly suitable for offices, classrooms, conference rooms and meeting rooms.
Lighting control can be overridden with 230 V push buttons. Use distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.
Product details
Presence detector P48MR, DALI-2, master, 12-13 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 x 2 m cable with 5-pol. connectors, white
This flat and discrete presence detector is a DALI-2 master for DALI lighting control in up to four dimmable zones. Lighting control can be overridden either via wireless and battery-free Bluetooth® push buttons or via 230 V push buttons. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. The detector is premounted with 2 cables and 5-pole female connectors that are each unique, which helps to avoid installation errors and save time.
The P48 DALI-2 master detector enables the following lighting control solutions in hallways, corridors, offices, classrooms and meeting rooms:
- Human Centric Lighting (HCL)
- tunable white
- scenarios
- multi-zone for a board light/smart board
- master/master link for adjacent areas control
Use the P48 DALI-2 master detector’s internal relay in combination with a distribution box (353-7080X) to enable the following lighting control solutions:
- HVAC control in combination with distribution box 353-70801 to accommodate the integration of HVAC systems
- Control of non-dimmable ON/OFF lighting with distribution box 353-70802
- Standby minimisation of DALI luminaires in combination with distribution box 353-70803 to save energy
- Control of non-dimmable luminaires externally on the DALI bus with distribution box 353-70806
The detection range can be extended with P46 DALI-2 secondary detectors with a 2 meter cable and a connector. Mind the maximum guaranteed current on the DALI bus.
Use distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.
Finishing colour: white
Compatible secondary detectors: 353-651021-1, 353-751021-1
Compatible controls: 360-21001
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Presence detector P48MR, DALI-2, master, 12-13 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 x 2 m cable with 5-pol. connectors, white.
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: DALI Broadcast/DALI Addressable
- Maximum power consumption: 0.6 W
- Maximum power consumption wireless link active: 0.65 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
- Short circuit behaviour restart period: every 14 s until success
- Maximum voltage on the DALI bus: 15 Vdc
- Maximum guaranteed current on the DALI bus: 200 mA
- Maximum supply current: 250 mA
- Maximum startup time DALI: <1200 ms
- Maximum PIR detection startup time: 1 min 10 s
- Maximum number of secondary detectors: 5
- Maximum number of control gear on the DALI bus: 64
- Maximum number of dimmable zones: 4
- Number of channels: 1 channel
- Light intensity range: 20 lux – 2000 lux, ∞
- Switch-off delay: pulse, 20 s – 2 h, ∞
- Detection angle: 360°
- Detection range (PIR): ø 12 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting (SnapFit)
- Minimum flush-mounting depth: (wrong type for option)
- Drill diameter: 76 mm
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Relay contact: N.O. (max. 10 A), potential-free
- Potential-free contact: NO, 230 V, µ10 A
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
- Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
- Maximum load low voltage halogen lamps: 500 W
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum load LED driver: 500 VA
- Maximum load electronic transformer: 500 VA
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Colour: white (approximately RAL 9010)
- Dimensions (HxWxD): 120 x 120 x 109.5 mm
- Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
- Weight: 615 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP20
- Impact resistance: IK02
- Protection class: Class II device
- Halogen-free: yes
- Marking: CE
- Cable specifications
- cable colour: grey
- length: 2 m
- wire cross section: 1,5 mm²
- voltage: 400 V
- rated current: 16 A
- halogen-free: yes
- ambient temperature: -5 – +40C°
- type of connector cable 1: male, 5-pole, light green
- type of connector cable 2: male, 5-pole, pink
WAGO WINSTA® distribution box, HVAC, P48 DALI-2
The distribution box allows you to integrate HVAC devices into your installation. It can be used in combination with P48 DALI-2 master detectors with two WAGO WINSTA® cables and connectors. Extend your installation with distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies, 230 V push buttons and HVAC systems are included. Each connector is unique, which helps to avoid installation errors and save time.
Finishing colour: black
Specification description
WAGO WINSTA® distribution box, HVAC, P48 DALI-2
- Ambient temperature: -35 – +85 °C
- Protection degree: IP20
- Weight: 397 g
- Dimensions (HxWxD): 30 x 190 x 145 mm
- Marking: CE
WAGO WINSTA® distribution box, ON/OFF, P48 DALI-2
This distribution box supports control of non-dimmable luminaires. It can be used in combination with P48 DALI-2 master detectors with two WAGO WINSTA® cables and connectors. Extend your installation with distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies, 230 V push buttons and 230 V non-dimmable luminaries are included. Each connector is unique, which helps to avoid installation errors and save time.
Finishing colour: black
Specification description
WAGO WINSTA® distribution box, ON/OFF, P48 DALI-2
- Ambient temperature: -35 – +85 °C
- Protection degree: IP20
- Weight: 407 g
- Dimensions (HxWxD): 30 x 190 x 145 mm
- Marking: CE
WAGO WINSTA® distribution box, standby minimisation, P48 DALI-2
This distribution box supports standby minimisation and ensures that the standby consumption of the connected DALI luminaries is set at 0 watts when no presence is detected in the room. It can be used in combination with P48 DALI-2 master detectors with two WAGO WINSTA® cables and connectors. Extend your installation with distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies and 230 V push buttons are included. Each connector is unique, which helps to avoid installation errors and save time.
Finishing colour: black
Specification description
WAGO WINSTA® distribution box, standby minimisation, P48 DALI-2
- Ambient temperature: -35 – +85 °C
- Protection degree: IP20
- Weight: 365 g
- Dimensions (HxWxD): 30 x 190 x 145 mm
- Marking: CE
Accessories
Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)
Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2, 353-751521
Specification description
Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)
- Weight: 16 g
Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)
This lens cover is designed to minimise the detection range of P4XMR and M4XMR detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.
Please note: each package contains 5 pieces.
Specification description
Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)
- Dimensions (HxWxD): 5 x 53 x 53 mm
- Weight: 1 g
Deco ring for flush-mounted P4XMR and M4XMR detectors, black
Black (RAL 9005).
Compatible articles: 353-600021, 353-600111, 353-600121, 353-601021, 353-601111, 353-601121, 353-601221, 353-650021, 353-650321, 353-650521, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-750521, 353-751521
Specification description
Deco ring for flush-mounted P4XMR and M4XMR detectors, black
- Colour: black (approximately RAL 9005)
- Weight: 16 g
