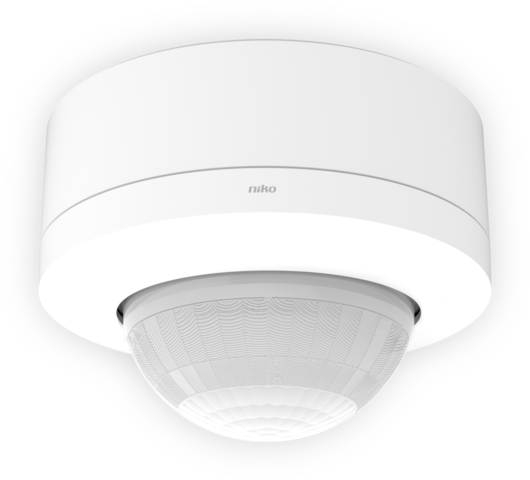

Presence detector P47LR, DALI-2, master, 32-37 m, IP54, for surface mounting
This presence detector is a DALI-2 master detector for DALI lighting control in up to three daylight zones. It is designed for surface mounting and has an IP54 protection degree. The lighting zones are defined during commissioning, using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Product details
Presence detector P47LR, DALI-2, master, 32-37 m, IP54, for surface mounting, white
This presence detector is a DALI-2 master detector for DALI lighting control in up to 3 daylight zones. It is designed for surface mounting and has an IP54 protection degree. The lighting zones are defined during commissioning, using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Finishing colour: white
Compatible secondary detectors: 353-650021, 353-651021, 353-652021, 353-750021, 353-751021, 353-752021, 353-852011
Compatible controls: 170-00005, 170-00015, 170-70015, 170-70005, 360-21001
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Presence detector P47LR, DALI-2, master, 32-37 m, IP54, for surface mounting, white.
- Surface mounting
- Daylight control in 1-3 daylight zones
- Quick cabling using screwless and easily accessible plug-in terminals
- User-friendly app for commissioning (iOS/Android)
- 2-way Bluetooth® communication ensures quick commissioning and live feedback in the app
- Supports DALI broadcast (default) and DALI addressable
- Fitted with three PIR segments, each covering 120°
- Pre-configured functions:
- auto configuration when replacing one DALI ballast/DALI device
- orientation light
- adjustable power-on level when daylight control is disabled
- adjustable PIR sensitivity (4 levels) in 3 x 120°
- one or more PIR segments can be disabled
- tunable white third-party integration
- event log keeps track of recent changes
- DALI lighting control can be overridden with a 230 V push button - different options available
- Suitable for controlling up to 64 DALI devices (consider guaranteed current on the DALI bus)
- Web based portal solution for backing up and exchanging configuration files
- Settings and configuration can be locked with a PIN code
- IP54 protection degree
Technical data
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: DALI Broadcast/DALI Addressable
- Maximum power consumption: 0.5 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
- Short circuit behaviour restart period: every 14 s until success
- Maximum voltage on the DALI bus: 15 Vdc
- Maximum guaranteed current on the DALI bus: 100 mA
- Maximum supply current: 250 mA
- Maximum startup time DALI: <1200 ms
- Maximum PIR detection startup time: 1 min 10 s
- Maximum number of secondary detectors: 2
- Maximum number of control gear on the DALI bus: 64
- Maximum number of dimmable zones: 3
- Light intensity range: 20 lux – 2000 lux, ∞
- Switch-off delay: pulse, 30 s – 2 h, ∞
- Detection angle: 360°
- Detection range (PIR): ø 37 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: surface mounting
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Colour: white (approximately RAL 9010)
- Dimensions (HxWxD): 100 x 100 x 70.7 mm
- Dimensions visible (HxWxD): 100 x 100 x 70.7 mm
- Weight: 206 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP54
- Impact resistance: IK04
- Protection class: Class II device
- Halogen-free: yes
- Marking: CE
- Certification marks: SundaHus, Byggvarubedömningen
