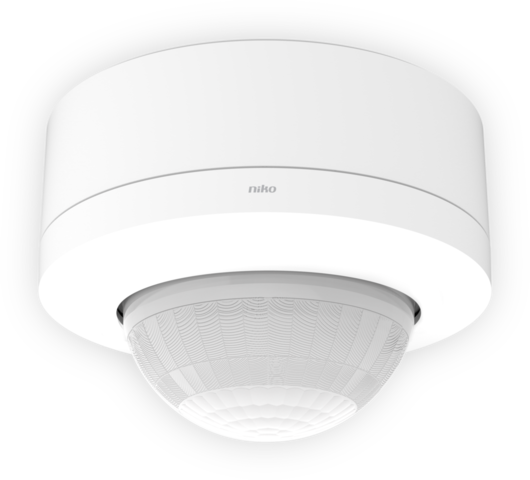

Presence detector P46LR, DALI-2, secondary - BMS, 32-37 m, IP54, for surface mounting

This presence detector is a DALI-2 secondary and BMS detector that extends the detection range of a DALI master detector or as part of a BMS system. It is designed for surface mounting and has an IP54 protection degree. If the secondary detector is connected to a DALI bus with a DALI master, it will start communicating with this master without further commissioning. If it is connected to a DALI bus or a BMS system, the detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector or using the BMS software.

Product details

This product consists of several components. Below you will find an overview of all the component parts.

Presence detector P46LR, DALI-2, secondary - BMS, 32-37 m, IP54, for surface mounting, white

Reference code
353-752021

This presence detector is a DALI-2 secondary and BMS detector that extends the detection range of a DALI master detector or as part of a BMS system. It is designed for surface mounting and has an IP54 protection degree. If the secondary detector is connected to a DALI bus with a DALI master, it will start communicating with this master without further commissioning. If it is connected to a DALI bus or a BMS system, the detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector or using the BMS software.

Finishing colour: white

Compatible master detectors: 353-650321, 353-651321, 353-651421, 353-652321, 353-652421, 353-750321, 353-751321, 353-751421, 353-752321, 353-752421, 353-852411

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Specification description

Presence detector P46LR, DALI-2, secondary - BMS, 32-37 m, IP54, for surface mounting, white.

  • Surface mounting
  • Easy installation thanks to the direct connection to the DALI bus
  • Communication with the master or BMS system via the DALI bus
  • Power supply via the DALI bus
  • Quick cabling using screwless and easily accessible plug-in terminals
  • User-friendly app for settings (iOS/Android) or BMS software
  • 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
  • Fitted with three PIR segments, each covering 120°
  • Pre-configured functions:
    • adjustable PIR sensitivity (4 levels) in 3 x 120°
    • one or more PIR segments can be disabled
    • event log keeps track of recent changes
  • Settings and configuration can be locked with a PIN code
  • IP54 protection degree

Technical data

  • Detector technology: PIR
  • Input voltage: via the DALI bus
  • Detector output: DALI-2
  • Maximum current consumption: 28.1 mA
  • Nominal current consumption (12 V, 25°C), Bluetooth® enabled: 8.1 mA
  • Nominal current consumption (12 V, 25°C), Bluetooth® disabled: 5 mA
  • Maximum MCB rating: 16 A (limited by national installation rules)
  • Maximum startup time DALI: <1200 ms
  • Maximum PIR detection startup time: 1 min 10 s
  • Light intensity range: 0 lux – 10360 lux
  • Detection angle: 360°
  • Detection range (PIR): ø 37 m from a height of 3 m
  • Ambient temperature: -25 – +40 °C
  • Mounting method: surface mounting
  • Mounting height: 2 – 3.5 m
  • Usage: for indoor use only
  • Colour: white (approximately RAL 9010)
  • Dimensions (HxWxD): 100 x 100 x 70.7 mm
  • Dimensions visible (HxWxD): 100 x 100 x 70.7 mm
  • Weight: 196 g
  • Maximum range Bluetooth® (free field, depending on the device): 50 m
  • Operating frequency: 2.4 GHz
  • Maximum radio frequency power: -2 dBm
  • Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication - BMS software
  • Protection degree: IP54
  • Impact resistance: IK04
  • Protection class: Class II device
  • Halogen-free: yes
  • Marking: CE
  • Certification marks: SundaHus, Byggvarubedömningen

Accessories

Technical datasheets
Certificaten CE-Marking

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

Reference code
353-999879

This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Specification description

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

  • Dimensions (HxWxD): 34 x 53 x 53 mm
  • Weight: 2 g
