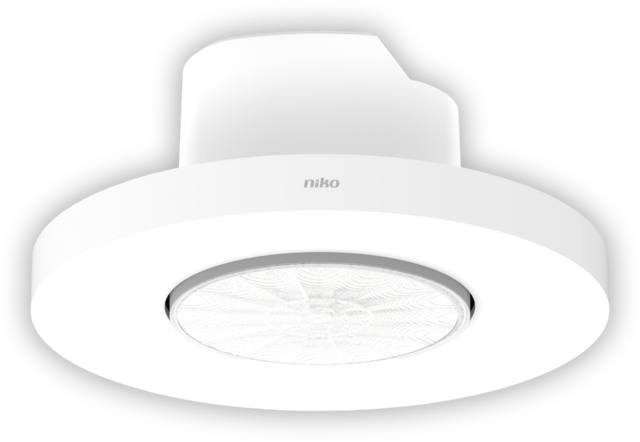

Presence detector P42MR, 230 V, master, 12-13 m, for flush-mounting box
This flat and discrete presence detector is a 1-channel master detector for automatic lighting control. The detector is fitted with multiple functions and can be controlled wirelessly by push buttons. The detector is specially designed for mounting in a standard flush-mounting box (60 or 79 mm screw distance). The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Product details
Presence detector P42MR, 230 V, master, 12-13 m, for flush-mounting box, white
This flat and discrete presence detector is a 1-channel master detector for automatic lighting control. The detector is fitted with multiple functions and can be controlled wirelessly by push buttons. The detector is specially designed for mounting in a standard flush-mounting box (60 or 79 mm screw distance). The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Finishing colour: white
Compatible secondary detectors: 353-600021, 353-601021, 353-602021, 353-700021, 353-701021, 353-702021, 353-802011
Compatible controls: 170-00005, 170-00015, 170-70015, 170-70005, 360-21001
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Presence detector P42MR, 230 V, master, 12-13 m, for flush-mounting box, white.
- Flat and discrete design
- Easy mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance)
- Quick cabling using screwless and easily accessible plug-in terminals
- User-friendly app for settings (iOS/Android)
- 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
- Pre-configured functions:
- adjustable PIR sensitivity (4 levels)
- event log keeps track of recent changes
- Detection range can be increased using up to 10 secondary detectors
- Wireless communication between master and secondary detectors with a repeater function
- Robust potential-free relay
- Automatic lighting control can be overridden with a 230 V push button - different options are available
- Settings and configuration can be locked with a PIN code
- Web based portal solution for back up and distribution of configuration files
Technical data
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: 230 V (ON/OFF)
- Maximum power consumption: 0.2 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Maximum number of secondary detectors: 10
- Maximum number of Bluetooth® push buttons: 4
- Number of channels: 1 channel
- Light intensity range: 20 lux – 2000 lux, ∞
- Switch-off delay: pulse, 15 s – 2 h, ∞
- Detection angle: 360°
- Detection range (PIR): ø 12 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting box
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Relay contact: N.O. (max. 10 A), potential-free
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
- Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
- Maximum load low voltage halogen lamps: 500 W
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum load LED driver: 500 VA
- Maximum load electronic transformer: 500 VA
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Colour: white (approximately RAL 9010)
- Dimensions (HxWxD): 100 x 100 x 44.5 mm
- Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
- Weight: 99 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP20
- Impact resistance: IK02
- Protection class: Class I device
- Halogen-free: yes
- Marking: CE
- Certification marks: SundaHus, Byggvarubedömningen
Accessories
Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)
This lens cover is designed to minimise the detection range of P4XMR and M4XMR detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.
Please note: each package contains 5 pieces.
Specification description
Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)
- Dimensions (HxWxD): 5 x 53 x 53 mm
- Weight: 1 g
Deco ring for flush-mounted P4XMR and M4XMR detectors, black
Black (RAL 9005).
Compatible articles: 353-600021, 353-600111, 353-600121, 353-601021, 353-601111, 353-601121, 353-601221, 353-650021, 353-650321, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2
Specification description
Deco ring for flush-mounted P4XMR and M4XMR detectors, black
- Colour: black (approximately RAL 9005)
- Weight: 16 g
