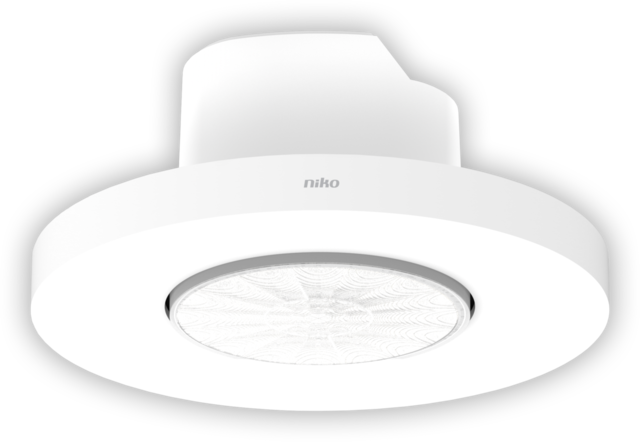

Presence detector P41MR, 230 V, secondary, 12-13 m, for flush-mounting box
This flat and discrete presence detector is a secondary detector that extends the detection range of a 230 V master detector. The detector is specially designed for mounting in a standard flush-mounting box (60 or 79 mm screw distance). The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Product details
Presence detector P41MR, 230 V, secondary, 12-13 m, for flush-mounting box, white
This flat and discrete presence detector is a secondary detector that extends the detection range of a 230 V master detector. The detector is specially designed for mounting in a standard flush-mounting box (60 or 79 mm screw distance). The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Finishing colour: white
Compatible master detectors: 353-600121, 353-601121, 353-601221, 353-602121, 353-602221, 353-700121, 353-701121, 353-701221, 353-702121, 353-702221, 353-802111
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Presence detector P41MR, 230 V, secondary, 12-13 m, for flush-mounting box, white.
- Flat and discrete design
- Easy mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance)
- Quick cabling using screwless and easily accessible plug-in terminals
- User-friendly app for settings (iOS/Android)
- 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
- Pre-configured functions:
- adjustable PIR sensitivity (4 levels)
- event log keeps track of recent changes
- Wireless communication between master and secondary detectors with a repeater function
- Settings and configuration can be locked with a PIN code
Technical data
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: 230 V (ON/OFF)
- Maximum power consumption: 0.2 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Detection angle: 360°
- Detection range (PIR): ø 12 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting box
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Colour: white (approximately RAL 9010)
- Dimensions (HxWxD): 100 x 100 x 44.5 mm
- Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
- Weight: 83 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP20
- Impact resistance: IK02
- Protection class: Class I device
- Halogen-free: yes
- Marking: CE
- Certification marks: SundaHus, Byggvarubedömningen
Accessories
Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)
This lens cover is designed to minimise the detection range of P4XMR and M4XMR detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.
Please note: each package contains 5 pieces.
Specification description
Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)
- Dimensions (HxWxD): 5 x 53 x 53 mm
- Weight: 1 g
Deco ring for flush-mounted P4XMR and M4XMR detectors, black
Black (RAL 9005).
Compatible articles: 353-600021, 353-600111, 353-600121, 353-601021, 353-601111, 353-601121, 353-601221, 353-650021, 353-650321, 353-650521, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-750521, 353-751521
Specification description
Deco ring for flush-mounted P4XMR and M4XMR detectors, black
- Colour: black (approximately RAL 9005)
- Weight: 16 g
