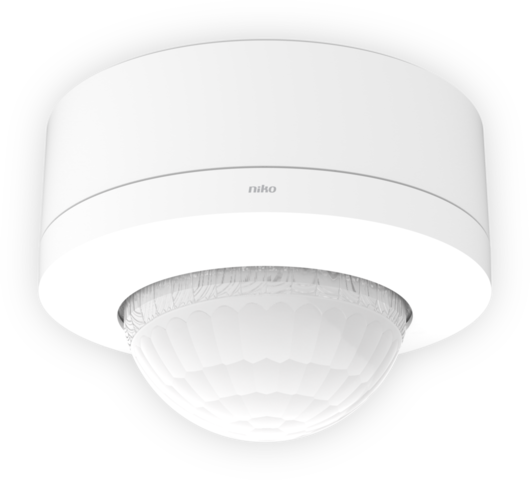

Motion detector M48HC, DALI-2, master, 18-53 m, IP54, for high ceilings, for surface mounting

This high ceiling detector is a DALI-2 master for DALI lighting control in up to 4 zones . The detector is fitted with multiple functions and can be controlled wirelessly using push buttons. It is designed for surface mounting and has an IP54 protection degree. The lighting zones are defined during commissioning, using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Finishing colour: white

Compatible secondary detectors: 353-650021, 353-651021, 353-652021, 353-750021, 353-751021, 353-752021, 353-852011

Compatible controls: 170-00005, 170-00015, 170-70015, 170-70005, 360-21001

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Motion detector M48HC, DALI-2, master, 18-53 m, IP54, for high ceilings, for surface mounting, white.

• High ceiling detector for surface mounting
• Lighting control in up to 4 zones (daylight controlled)
• Quick cabling using screwless and easily accessible plug-in terminals
• Commissioning using app (iOS/Android) and 2-way Bluetooth® communication
• Supports DALI broadcast (default) and DALI addressable (up to 64 devices)
• Pre-configured functions:
  • auto configuration / orientation light / night mode
  • light scenarios – define and control up to 16 light scenarios
  • wireless communication master-to-master enabling: folding door, lighting control in adjacent areas, unlimited number of DALI devices ( > 64 DALI devices)
  • multi zone for board lighting and smart board lighting
  • tunable white using integrated presets or third-party integration
  • human centric lighting (24 presets)
  • output relay - control HVAC / standby minimization / light (On/Off)
  • external relay for HVAC / standby minimization / light (On/Off)
  • adjustable turn-on level when daylight control is disabled
  • adjustable PIR sensitivity (5 levels incl. disable) in 3 x 120°
  • event log keeps track of recent changes
• DALI lighting control can be overridden with a 230 V push button - different options available - different options available
• External DALI-2 input devices via DALI bus - up to 64 devices
• External trigger can be connected e.g. security alarm
• Web based portal solution for backing up and exchanging configuration files
• Settings and configuration can be locked with a PIN code
• IP54 protection degree

Technical data

• Detector technology: PIR
• Input voltage: 230 Vac ± 10 %, 50 Hz
• Detector output: DALI Broadcast/DALI Addressable
• Maximum power consumption: 0.6 W
• Maximum power consumption wireless link active: 0.65 W
• Maximum MCB rating: 16 A (limited by national installation rules)
• Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
• Short circuit behaviour restart period: every 14 s until success
• Maximum voltage on the DALI bus: 15 Vdc
• Maximum guaranteed current on the DALI bus: 200 mA
• Maximum supply current: 250 mA
• Maximum startup time DALI: <1200 ms
• Maximum PIR detection startup time: 1 min 10 s
• Maximum number of secondary detectors: 5
• Maximum number of 230 V push buttons and switches: 4
• Maximum number of Bluetooth® push buttons: 4
• Maximum number of 24 V push buttons: 16 (using 4 DALI-2 push-button interfaces - max. 4 buttons per interface)
• Possibility to override DALI lighting control using a control: yes
• Maximum number of control gear on the DALI bus: 64
• Maximum number of dimmable zones: 4
• Number of channels: 1 channel
• Light intensity range: 20 lux – 2000 lux, ∞
• Switch-off delay: pulse, 30 s – 2 h, ∞
• Detection angle: 360°
• Detection range (PIR): ø 53 m from a height of 12 m
• Ambient temperature: -25 – +40 °C
• Mounting method: surface mounting
• Mounting height: 4 – 12 m
• Usage: for indoor use only
• Relay contact: N.O. (max. 10 A), potential-free
• Potential-free contact: NO, 230 V, µ10 A
• Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
• Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
• Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
• Maximum load low voltage halogen lamps: 500 W
• Maximum load economy lamps (CFLi): 350 W
• Maximum load LED lamps 230 V: 350 W
• Maximum load LED driver: 500 VA
• Maximum load electronic transformer: 500 VA
• Maximum capacitive load: 140 µF
• Maximum switching current: 165 A/20 ms – 800 A/200 µs
• Colour: white (approximately RAL 9010)
• Dimensions (HxWxD): 100 x 100 x 70.7 mm
• Dimensions visible (HxWxD): 100 x 100 x 70.7 mm
• Weight: 192 g
• Maximum range Bluetooth® (free field, depending on the device): 50 m
• Operating frequency: 2.4 GHz
• Maximum radio frequency power: -2 dBm
• Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
• Protection degree: IP54
• Impact resistance: IK03
• Protection class: Class II device
• Halogen-free: yes
• Marking: CE
• Certification marks: SundaHus, Byggvarubedömningen

This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

• Dimensions (HxWxD): 34 x 53 x 53 mm
• Weight: 2 g
