Step 2

Converting two-way switches

Identify the present connection diagram and mark the following wires with labels:

  • Phase conductor supplying 230V
  • Wires that lead to the lamp

Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

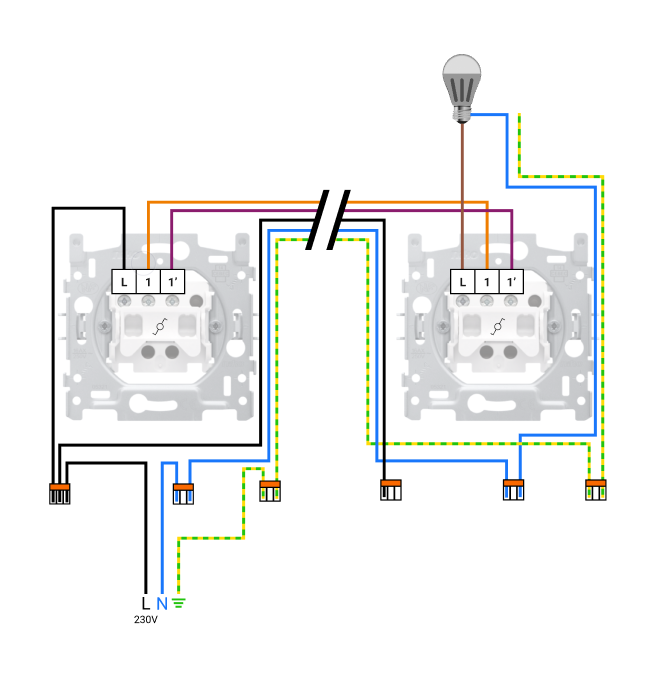

Current connection diagram

Warning: Your connection may look different, this example is only one of the options.



Return to Identify switching

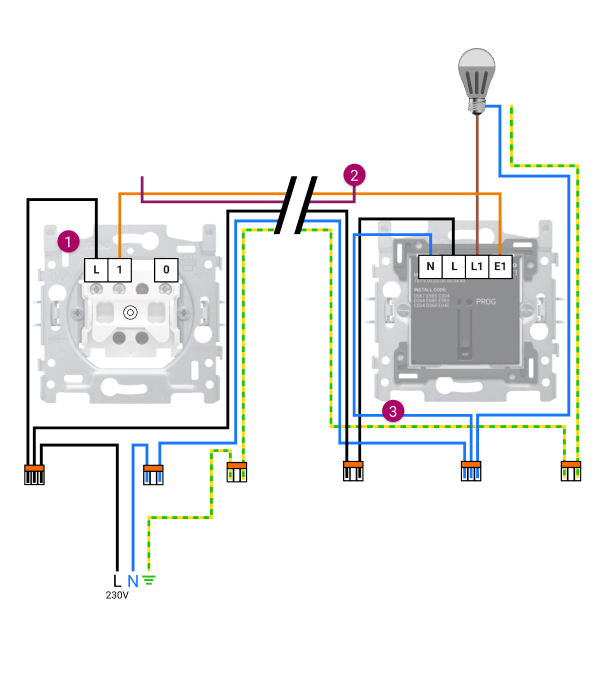

Niko Home Control connection diagram

Connect the connected single switch.

Warning: Always connect the connected switch directly to the lamp.

You need an extra wire, because you must connect the neutral conductor to the connected switch. One of the switching wires that was needed to connect the two-way switches will no longer be used . On the extension exit of the connected switch you connect a traditional push button . In doing so you replace both two-way switches.

Return to Identify switching
