Step 2

Converting single-pole switching

Identify the present connection diagram and mark the following wires with labels:

  • Phase conductor supplying 230V
  • Wires that lead to the lamp

Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

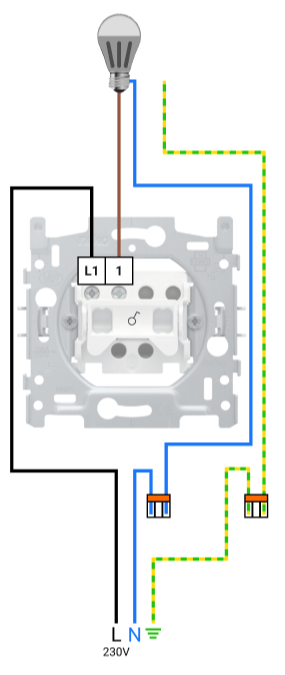

Current connection diagram



Return to Identify switching

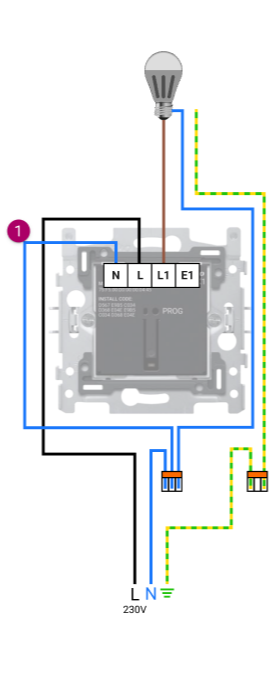

Niko Home Control connection diagram

Connect the connected single switch.

You need an extra wire, because you must connect the neutral conductor to the connected switch. The E1 terminal can be kept free, as this is only used in two-way or intermediate switching to connect traditional push buttons to the connected switch.

Return to Identify switching
