Step 2
Converting a two-pole switch
Identify the present connection diagram and mark the following wires with labels:
- Phase conductor supplying 230V
- Wires that lead to the lamp
Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

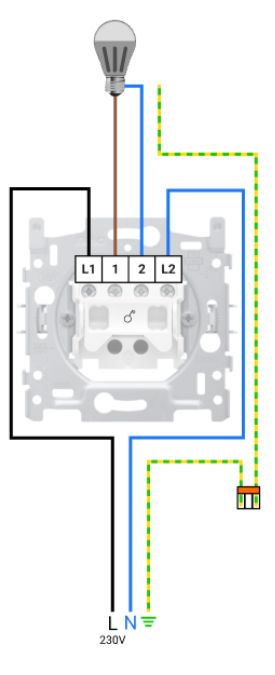

Current connection diagram

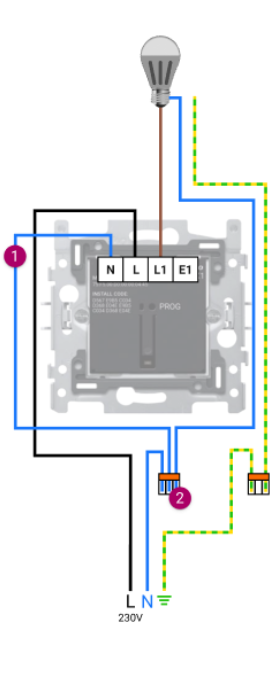

Niko Home Control connection diagram
Connect the connected single switch.
You need an extra wire❶ and a connection terminal❷, because you must connect the neutral conductor to the connected switch. The E1 terminal can be kept free, as this is only used in two-way or intermediate switching to connect traditional push buttons to the connected switch.
Warning: Replace the fuse as this is insufficient for the new situation. A single switch in a damp room must be fused to a maximum of 16A, even in a mixed circuit.
