Step 2

Adapt control with multiple push buttons

Identify the present connection diagram and mark the following wires with labels:

  • Phase conductor supplying 230 V
  • Wires that lead to the lamp

Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

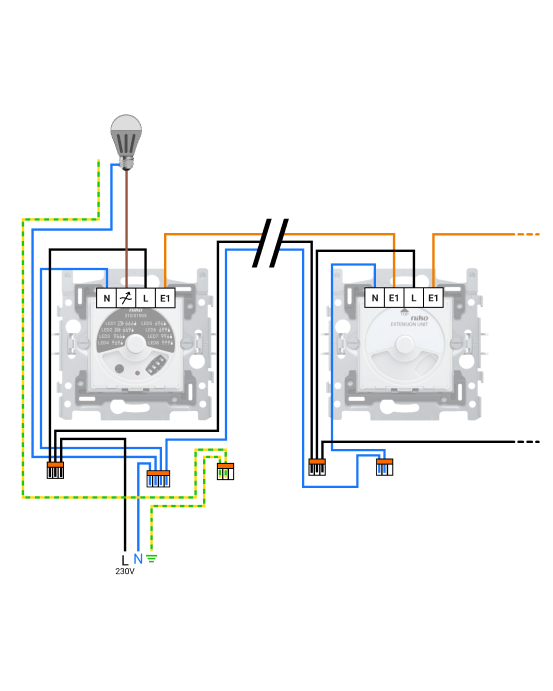

Current connection diagram



Return to Identify switching

Warning: Your connection may look different, this example is only one of the options.

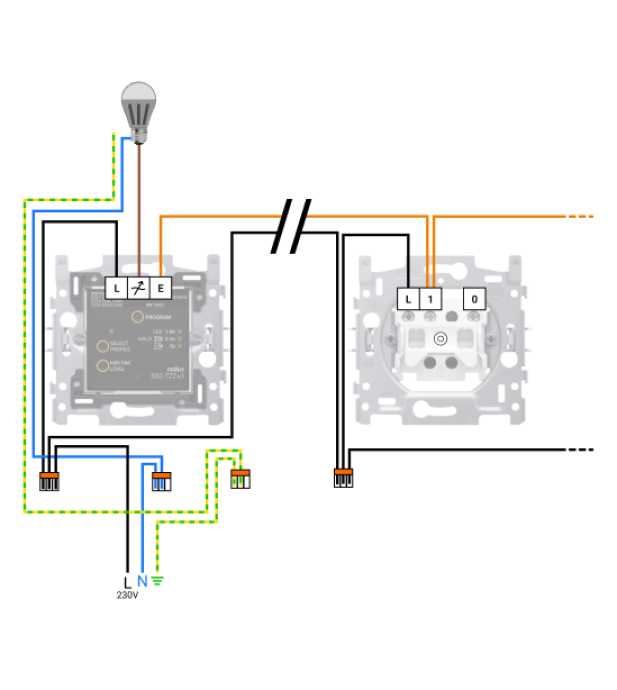

Niko Home Control connection diagram

Connect the connected dimmer.

The connected dimmer is always directly linked to the lamp.

Return to Identify switching

Continue
