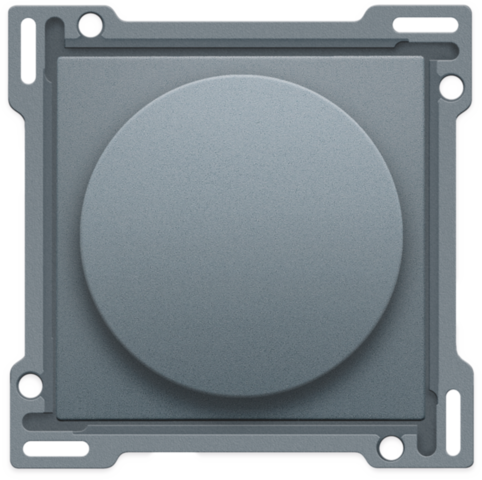

Finishing set for rotary dimmer or speed controller, incl. rotary button, blue grey coated

Finishing set with a rotary button for a rotary dimmer or a speed controller. Finishing colour: blue grey coated.

Finishing set for rotary dimmer or speed controller, incl. rotary button, blue grey coated. This central plate is surrounded with a flat edge that is equipped at all 4 corners with a rectangular opening, each containing a multi-positional snap hook. The construction of the central plate ensures that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The flat edge around the central plate also has 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate. After mounting all components (faceplate, finishing set and switch), no metal parts are visible thanks to the flat edge of the central plate.

• Material central plate: The central plate is enamelled and made of rigid PC and ASA.
• Colour: enamelled blue grey (approximately NCS S 8005 - R80B, RAL 240 30 05)
• Dismantling: To dismount simply unscrew the central plate.
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Fire safety
  • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
  • the plastic parts of the central plate are halogen-free
• Dimensions of finishing with flat edge: 56 x 56 mm (HxW)

Dimensions of visible area of finishing: 45 x 45 mm (HxW)

• Dimensions (HxWxD): 55.8 x 55.8 x 20.4 mm
• Marking: CE
