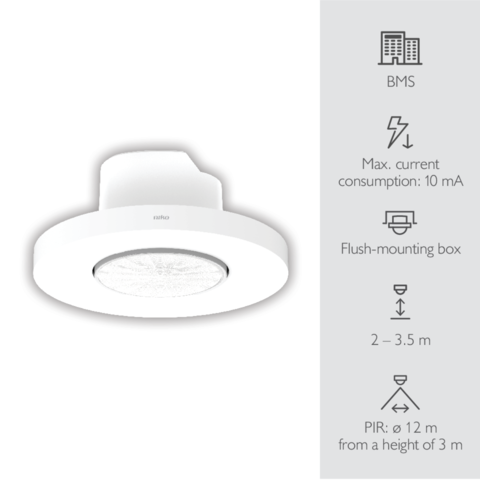

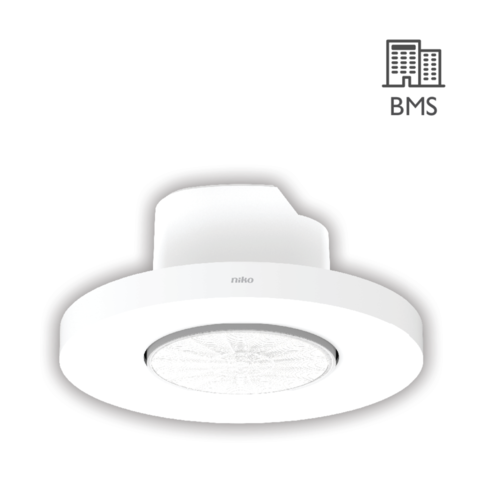

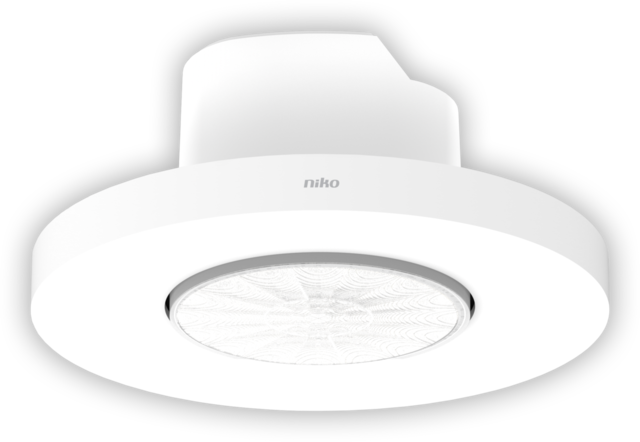

Presence detector P49MR, DALI-2, BMS, 12-13 m, for flush-mounting box
This flat and discrete DALI-2 presence detector can be part of a BMS system. The detector is specially designed for mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance). The detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app or the BMS software.
Product details
Presence detector P49MR, DALI-2, BMS, 12-13 m, for flush-mounting box, white
Available in January 2025.
This flat and discrete presence detector is a DALI-2 BMS detector that can be part of a BMS system. The detector is specially designed for mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance). The detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app and using the BMS software.
Finishing colour: white
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Presence detector P49MR, DALI-2, BMS, 12-13 m, for flush-mounting box, white.
- Flat and discrete design
- Easy installation thanks to the direct connection to the DALI bus
- Communication with the BMS system via the DALI bus
- Power supply via the DALI bus
- Easy mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance)
- Quick cabling using screwless and easily accessible plug-in terminals
- User-friendly app for settings (iOS/Android) or BMS software
- Communication between smartphone and detector via Bluetooth®
- Possible to disable Bluetooth® communication
- Pre-configured functions:
- adjustable PIR sensitivity (4 levels)
- event log keeps track of recent changes
- Settings can be locked with a PIN-code
Technical data
- Detector technology: PIR
- Input voltage: via the DALI bus
- Detector output: DALI-2
- Maximum current consumption: 10 mA
- Nominal current consumption (12 V, 25°C), Bluetooth® enabled: 5 mA
- Nominal current consumption (12 V, 25°C), Bluetooth® disabled: 4 mA
- Maximum startup time DALI: <1200 ms
- Maximum PIR detection startup time: 1 min 10 s
- Light intensity range: 0 lux – 10360 lux
- Detection angle: 360°
- Detection range (PIR): ø 12 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting box
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Colour: white (approximately RAL 9010)

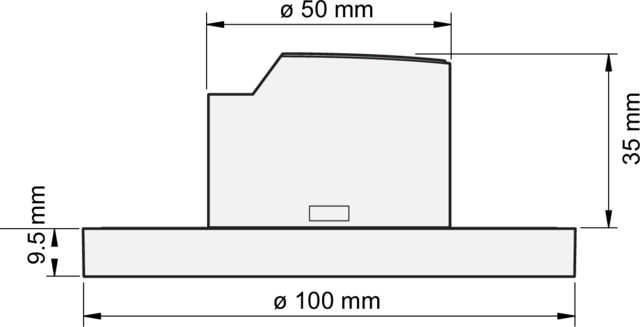

- Dimensions (HxWxD): 100 x 100 x 44.5 mm
- Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
- Weight: 76 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and BMS software
- Protection degree: IP20
- Impact resistance: IK02
- Protection class: Class II device
- Halogen-free: yes
- Marking: CE
- Certification marks: Byggvarubedömningen, SundaHus
Accessories
Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)
This lens cover is designed to minimise the detection range of P4XMR and M4XMR detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.
Please note: each package contains 5 pieces.
Specification description
Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)
- Dimensions (HxWxD): 5 x 53 x 53 mm
- Weight: 1 g
Deco ring for flush-mounted P4XMR and M4XMR detectors, black
Black (RAL 9005).
Compatible articles: 353-600021, 353-600111, 353-600121, 353-601021, 353-601111, 353-601121, 353-601221, 353-650021, 353-650321, 353-650521, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-750521, 353-751521
Specification description
Deco ring for flush-mounted P4XMR and M4XMR detectors, black
- Colour: black (approximately RAL 9005)
- Weight: 16 g
