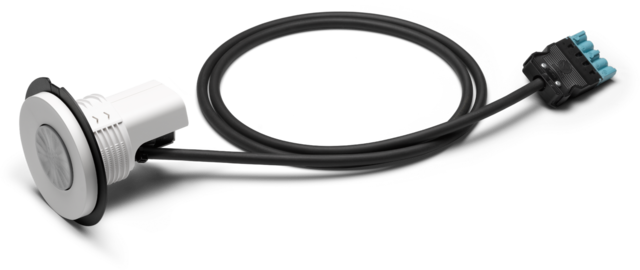

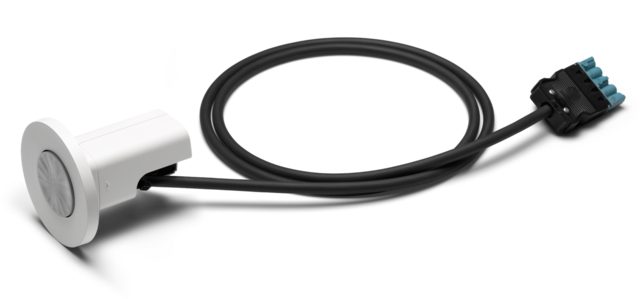

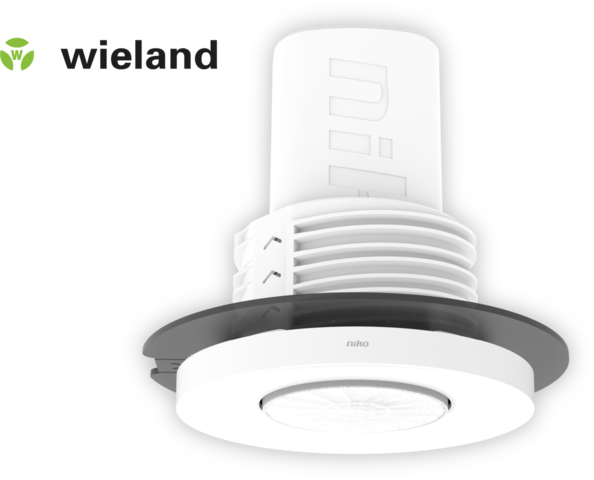

Presence detector P48MR, DALI-2, master, 12-13 m, for flush mounting (SnapFit), Wieland gesis® 2 m cable with 5-pol. connector

This flat and discrete presence detector is a DALI-2 master for DALI lighting control in up to four dimmable zones. Daylight control can be overridden via wireless and battery-free Bluetooth® push buttons. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. The detector is prewired with a cable and a 5-pole female connector that is unique, which helps to avoid installation errors and save time.

Use this P48 DALI-2 master detector to enable the following lighting control solutions in hallways, corridors, offices, classrooms and meeting rooms:

• Human Centric Lighting (HCL)
• tunable white
• four dimmable zones
• scenarios
• control of non-dimmable luminaires externally on the DALI bus with distribution box 353-70816
• multi-zone for a board light/smart board
• master/master link for adjacent areas control

The detection range can be extended with P46 DALI-2 secondary detectors with a 2 meter cable and connector. Mind the maximum guaranteed current on the DALI bus.

Use distribution box 353-70814 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.

Finishing colour: white

Compatible controls: 360-21001

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Presence detector P48MR, DALI-2, master, 12-13 m, for flush mounting (SnapFit), Wieland gesis® 2 m cable with 5-pol. connector, white.

• Detector technology: PIR
• Input voltage: 230 Vac ± 10 %, 50 Hz
• Detector output: DALI Broadcast/DALI Addressable
• Maximum power consumption: 0.6 W
• Maximum power consumption wireless link active: 0.65 W
• Maximum MCB rating: 16 A (limited by national installation rules)
• Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
• Short circuit behaviour restart period: every 14 s until success
• Maximum voltage on the DALI bus: 15 Vdc
• Maximum guaranteed current on the DALI bus: 200 mA
• Maximum supply current: 250 mA
• Maximum startup time DALI: <1200 ms
• Maximum PIR detection startup time: 1 min 10 s
• Maximum number of secondary detectors: 5
• Maximum number of control gear on the DALI bus: 64
• Maximum number of dimmable zones: 4
• Number of channels: 1 channel
• Light intensity range: 20 lux – 2000 lux, ∞
• Switch-off delay: pulse, 20 s – 2 h, ∞
• Detection angle: 360°
• Detection range (PIR): ø 12 m from a height of 3 m
• Ambient temperature: -25 – +40 °C
• Mounting method: flush-mounting (SnapFit)
• Minimum flush-mounting depth: (wrong type for option)
• Drill diameter: 76 mm
• Mounting height: 2 – 3.5 m
• Usage: for indoor use only
• Relay contact: N.O. (max. 10 A), potential-free
• Potential-free contact: NO, 230 V, µ10 A
• Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
• Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
• Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
• Maximum load low voltage halogen lamps: 500 W
• Maximum load economy lamps (CFLi): 350 W
• Maximum load LED lamps 230 V: 350 W
• Maximum load LED driver: 500 VA
• Maximum load electronic transformer: 500 VA
• Maximum capacitive load: 140 µF
• Maximum switching current: 165 A/20 ms – 800 A/200 µs
• Colour: white (approximately RAL 9010)
• Dimensions (HxWxD): 120 x 120 x 109.5 mm
• Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
• Weight: 310 g
• Maximum range Bluetooth® (free field, depending on the device): 50 m
• Operating frequency: 2.4 GHz
• Maximum radio frequency power: -2 dBm
• Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
• Protection degree: IP20
• Impact resistance: IK02
• Protection class: Class II device
• Halogen-free: yes
• Marking: CE
• Cable specifications
  • cable colour: black
  • length: 2 m
  • wire cross-section: 1,5 mm²
  • voltage: 230 V
  • rated current: 16 A
  • halogen-free: yes
  • ambient temperature: -5 – +70C°
  • type of connector: male, 5-pole, blue

This lens cover is designed to minimise the detection range of P4XMR and M4XMR detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)

• Dimensions (HxWxD): 5 x 53 x 53 mm
• Weight: 1 g
