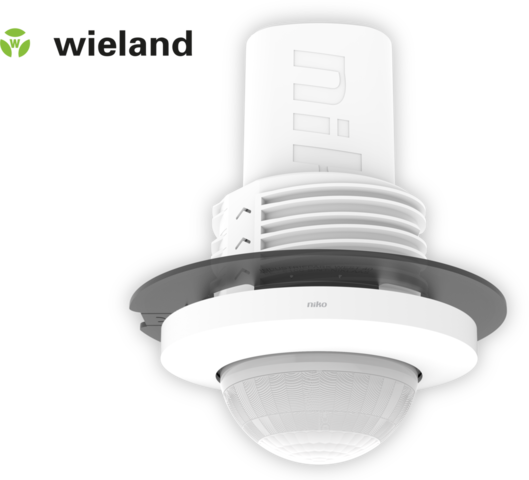

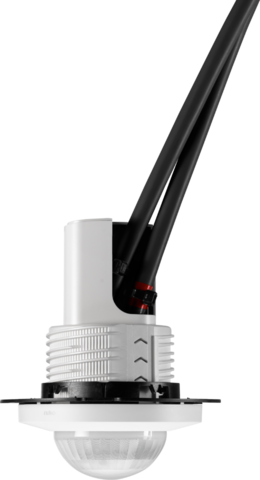

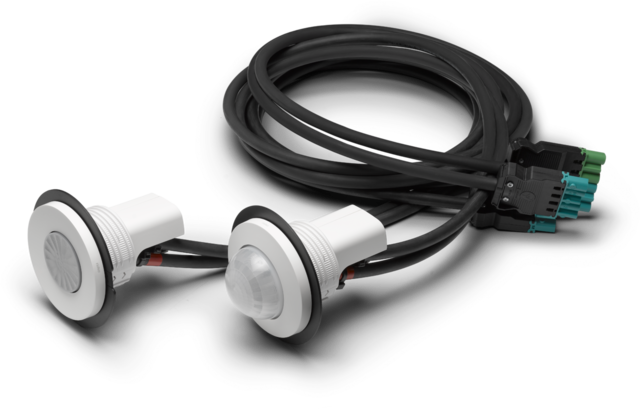

Presence detector P48LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), Wieland gesis® 2 x 2 m cable with 5-pol. connectors
This presence detector is a DALI-2 master for DALI lighting control in up to four zones. It can be controlled wirelessly by push buttons. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. Moreover, the detector is prewired with cables and 5-pole female connectors that are each unique, which helps to avoid installation errors and save time.
Use the P48 detector’s internal relay in combination with a distribution box (353-7080X) to enable the following lighting control functions:
- HVAC control in combination with distribution box 353-70801 to accommodate the integration of HVAC systems
- Control of non-dimmable ON/OFF lighting with distribution box 353-70802
- Standby minimisation of luminaires in combination with distribution box 353-70803 to save energy
- Control of non-dimmable luminaires externally on the DALI-bus with distribution box 353-70806
The range can be extended with up to ten P46 DALI-2 secondary detectors with a 2 meter cable and a connector. Mind the maximum guaranteed current on the DALI bus.
These solutions are mainly suitable for offices, classrooms, conference rooms and meeting rooms.
Lighting control can be overridden with 230 V push buttons. Use distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.
Product details

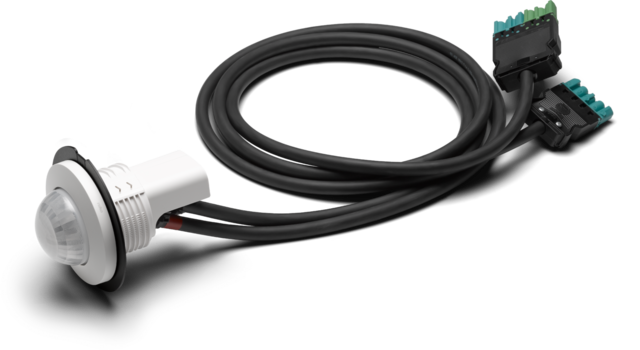

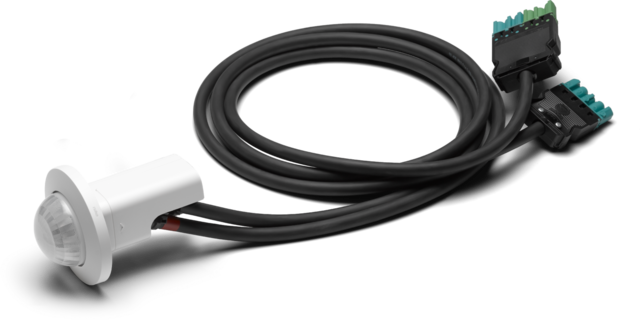

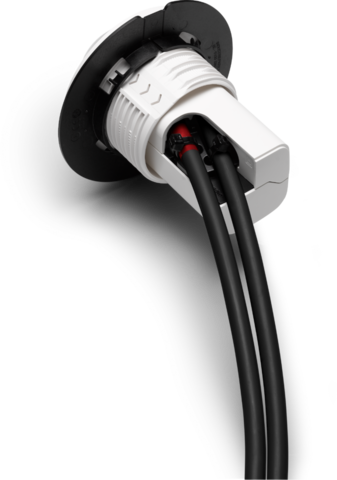

Presence detector P48LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), Wieland gesis® 2 x 2 m cable with 5-pol. connectors, white
This presence detector is a DALI-2 master for DALI lighting control in up to four dimmable zones. It can be overridden either via 230 V push buttons or via wireless and battery-free Bluetooth® push buttons. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. The detector is premounted with 2 cables and 5- and 6-pole female connectors that are each unique, which helps to avoid installation errors and save time.
The P48 DALI-2 master detector enables the following lighting control solutions in hallways, corridors, offices, classrooms and meeting rooms:
- Human Centric Lighting (HCL)
- tunable white
- scenarios
- multi-zone for a board light/smart board
- wireless master/master link for adjacent areas control
Use the P48 DALI-2 master detector’s internal relay in combination with a distribution box (353-7081X) to enable the following lighting control functions:
- HVAC control in combination with distribution box 353-70811 to accommodate the integration of HVAC systems
- Control of non-dimmable ON/OFF lighting with distribution box 353-70812
- Standby minimisation of DALI luminaires in combination with distribution box 353-70813 to save energy
- Control of non-dimmable luminaires externally on the DALI bus with distribution box 353-70816
The detection range can be extended with P46 DALI-2 secondary detectors with a 2 meter cable and a connector. Mind the maximum guaranteed current on the DALI bus. Use distribution box 353-70814 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.
Finishing colour: white
Compatible controls: 360-21001
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Presence detector P48LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), Wieland gesis® 2 x 2 m cable with 5-pol. connectors, white.
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: DALI Broadcast/DALI Addressable
- Maximum power consumption: 0.6 W
- Maximum power consumption wireless link active: 0.65 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
- Short circuit behaviour restart period: every 14 s until success
- Maximum voltage on the DALI bus: 15 Vdc
- Maximum guaranteed current on the DALI bus: 200 mA
- Maximum supply current: 250 mA
- Maximum startup time DALI: <1200 ms
- Maximum PIR detection startup time: 1 min 10 s
- Maximum number of secondary detectors: 5
- Maximum number of control gear on the DALI bus: 64
- Maximum number of dimmable zones: 4
- Number of channels: 1 channel
- Light intensity range: 20 lux – 2000 lux, ∞
- Switch-off delay: pulse, 20 s – 2 h, ∞
- Detection angle: 360°
- Detection range (PIR): ø 37 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting (SnapFit)
- Minimum flush-mounting depth: (wrong type for option)
- Drill diameter: 76 mm
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Relay contact: N.O. (max. 10 A), potential-free
- Potential-free contact: NO, 230 V, µ10 A
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
- Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
- Maximum load low voltage halogen lamps: 500 W
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum load LED driver: 500 VA
- Maximum load electronic transformer: 500 VA
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Colour: white (approximately RAL 9010)
- Dimensions (HxWxD): 100 x 100 x 142.2 mm
- Dimensions visible (HxWxD): 100 x 100 x 42.2 mm
- Weight: 634 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP20
- Impact resistance: IK04
- Protection class: Class II device
- Halogen-free: yes
- Marking: CE
- Cable specifications
- cable colour wire 1: black
- cable colour wire 2: black with red shrink tube
- length: 2 m
- wire cross section: 1,5 mm²
- voltage: 250 V
- rated current: 16 A
- halogen-free: yes
- ambient temperature: -5 – +70C°
- type of connector cable 1: male, 5-pole, blue
- type of connector cable 2: male, 6-pole, blue/green
Wieland gesis® distribution box, HVAC, P48 DALI-2
The distribution box allows you to integrate HVAC devices into your installation. It can be used in combination with P48 DALI-2 master detectors with two Wieland gesis® cables and connectors. Extend your installation with distribution box 353-70814 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies, 230 V push buttons and HVAC systems are included. Each connector is unique, which helps to avoid installation errors and save time.
Finishing colour: black
Specification description
Wieland gesis® distribution box, HVAC, P48 DALI-2
- Ambient temperature: -40 – +85 °C
- Protection degree: IP20
- Weight: 386 g
- Dimensions (HxWxD): 30 x 170 x 121 mm
- Marking: CE
Wieland gesis® distribution box, ON/OFF, P48 DALI-2
This distribution box supports control of non-dimmable luminaires. It can be used in combination with P48 DALI-2 master detectors with two Wieland gesis® cables and connectors. Extend your installation with distribution box 353-70814 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies, 230 V push buttons and 230 V non-dimmable luminaries are included. Each connector is unique, which helps to avoid installation errors and save time.
Finishing colour: black
Specification description
Wieland gesis® distribution box, ON/OFF, P48 DALI-2
- Ambient temperature: -40 – +85 °C
- Protection degree: IP20
- Weight: 393 g
- Dimensions (HxWxD): 30 x 170 x 121 mm
- Marking: CE
Wieland gesis® distribution box, standby minimisation, P48 DALI-2
This distribution box supports standby minimisation and ensures that the standby consumption of the connected DALI luminaries is set at 0 watts when no presence is detected in the room. It can be used in combination with P48 DALI-2 master detectors with two Wieland gesis® cables and connectors. Extend your installation with distribution box 353-70814 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies and 230 V push buttons are included. Each connector is unique, which helps to avoid installation errors and save time.
Finishing colour: black
Specification description
Wieland gesis® distribution box, standby minimisation, P48 DALI-2
- Ambient temperature: -40 – +85 °C
- Protection degree: IP20
- Weight: 356 g
- Dimensions (HxWxD): 30 x 170 x 121 mm
- Marking: CE
Accessories
Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)
This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.
Please note: each package contains 5 pieces.
Specification description
Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)
- Dimensions (HxWxD): 34 x 53 x 53 mm
- Weight: 2 g
