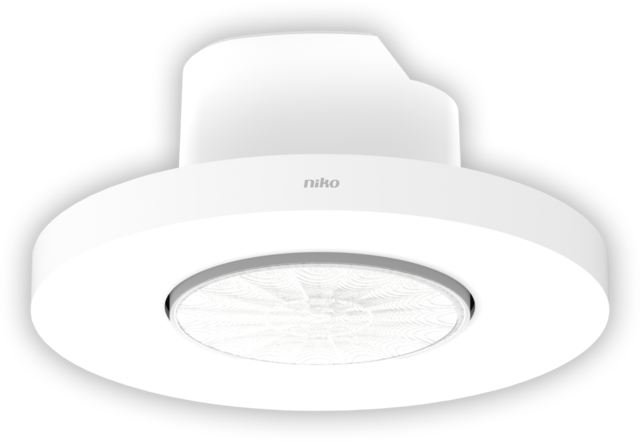

Presence detector P46MR, DALI-2, secondary - BMS, 12-13 m, for flush-mounting box

This flat and discrete presence detector is a DALI-2 secondary and BMS detector that extends the detection range of a DALI master detector or can be part of a BMS system. The detector is specially designed for mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance). If the detector is used as a secondary detector and connected to a DALI bus controlled by a DALI master detector, it will start communicating with this master detector without further commissioning. If it is connected to a DALI bus or a BMS system, the detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector or using the BMS software.

Finishing colour: white

Compatible master detectors: 353-650321, 353-651321, 353-651421, 353-652321, 353-652421, 353-750321, 353-751321, 353-751421, 353-752321, 353-752421, 353-852411

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Presence detector P46MR, DALI-2, secondary - BMS, 12-13 m, for flush-mounting box, white.

• Flat and discrete design
• Easy installation thanks to the direct connection to the DALI bus
• Communication with the master or BMS system via the DALI bus
• Power supply via the DALI bus
• Easy mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance)
• Quick cabling using screwless and easily accessible plug-in terminals
• User-friendly app for settings (iOS/Android) or BMS software
• 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
• Pre-configured functions:
  • adjustable PIR sensitivity (4 levels)
  • event log keeps track of recent changes
• Settings and configuration can be locked with a PIN-code

Technical data

• Detector technology: PIR
• Input voltage: via the DALI bus
• Detector output: DALI-2
• Maximum current consumption: 28.1 mA
• Nominal current consumption (12 V, 25°C), Bluetooth® enabled: 8.1 mA
• Nominal current consumption (12 V, 25°C), Bluetooth® disabled: 5 mA
• Maximum MCB rating: 16 A (limited by national installation rules)
• Maximum startup time DALI: <1200 ms
• Maximum PIR detection startup time: 1 min 10 s
• Light intensity range: 0 lux – 10360 lux
• Detection angle: 360°
• Detection range (PIR): ø 12 m from a height of 3 m
• Ambient temperature: -25 – +40 °C
• Mounting method: flush-mounting box
• Mounting height: 2 – 3.5 m
• Usage: for indoor use only
• Colour: white (approximately RAL 9010)
• Dimensions (HxWxD): 100 x 100 x 44.5 mm
• Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
• Weight: 76 g
• Maximum range Bluetooth® (free field, depending on the device): 50 m
• Operating frequency: 2.4 GHz
• Maximum radio frequency power: -2 dBm
• Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication - BMS software
• Protection degree: IP20
• Impact resistance: IK02
• Protection class: Class II device
• Halogen-free: yes
• Marking: CE
• Certification marks: SundaHus, Byggvarubedömningen

This lens cover is designed to minimise the detection range of P4XMR and M4XMR detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)

• Dimensions (HxWxD): 5 x 53 x 53 mm
• Weight: 1 g

Black (RAL 9005).

Compatible articles: 353-600021, 353-600111, 353-600121, 353-601021, 353-601111, 353-601121, 353-601221, 353-650021, 353-650321, 353-650521, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-750521, 353-751521

Deco ring for flush-mounted P4XMR and M4XMR detectors, black

• Colour: black (approximately RAL 9005)
• Weight: 16 g
