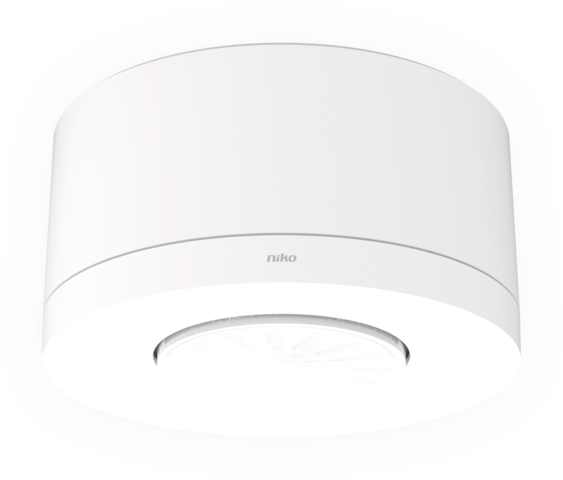

Motion detector M42MR, 230 V, 12-13 m, IP54, for surface mounting
This motion detector is a 1-channel, stand-alone detector for automatic lighting control. The detector is designed for surface mounting and has an IP54 protection degree. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Product details
Motion detector M42MR, 230 V, 12-13 m, IP54, for surface mounting, white
This motion detector is a 1-channel, stand-alone detector for automatic lighting control. The detector is designed for surface mounting and has an IP54 protection degree. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Finishing colour: white
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Motion detector M42MR, 230 V, 12-13 m, IP54, for surface mounting, white.
- Surface mounting
- Quick cabling using screwless and easily accessible plug-in terminals
- User-friendly app for commissioning (iOS/Android)
- 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
- Pre-configured functions:
- adjustable PIR sensitivity (4 levels)
- event log keeps track of recent changes
- Robust potential-free relay
- Automatic lighting control can be overridden with a 230 V push button - different options available
- Settings and configuration can be locked with a PIN-code
- Web based portal solution for backing up and exchanging configuration files
- IP54 protection degree
Technical data
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: 230 V (ON/OFF)
- Maximum power consumption: 0.2 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Number of channels: 1 channel
- Light intensity range: 20 lux – 2000 lux, ∞
- Switch-off delay: pulse, 15 s – 2 h, ∞
- Detection angle: 360°
- Detection range (PIR): ø 12 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: surface mounting
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Relay contact: N.O. (max. 10 A), potential-free
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
- Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
- Maximum load low voltage halogen lamps: 500 W
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum load LED driver: 500 VA
- Maximum load electronic transformer: 500 VA
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Colour: white (approximately RAL 9010)
- Dimensions (HxWxD): 100 x 100 x 50 mm
- Dimensions visible (HxWxD): 100 x 100 x 50 mm
- Weight: 188 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP54
- Impact resistance: IK02
- Protection class: Class I device
- Halogen-free: yes
- Marking: CE
- Certification marks: SundaHus, Byggvarubedömningen
