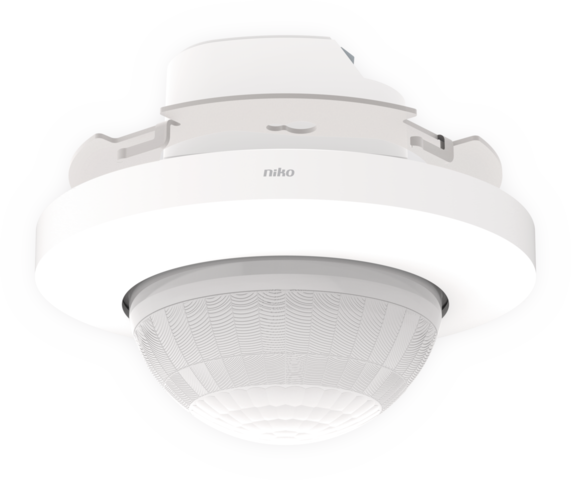

Motion detector M42LR, 230 V, 32-37 m, for flush-mounting box

This motion detector is a 1-channel, stand-alone detector with a large detection range for automatic lighting control. The detector is specially designed for mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance). The detector’s settings can be modified using the Niko detector tool app and 2 way Bluetooth® communication between a smartphone and the detector.

Finishing colour: white

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Motion detector M42LR, 230 V, 32-37 m, for flush-mounting box, white.

• Easy mounting in a standard flush-mounting box (60 or 79 mm diagonal screw distance)
• Quick cabling using screwless and easily accessible plug-in terminals
• User-friendly app for commissioning (iOS/Android)
• 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
• Fitted with three PIR segments, each covering 120°
• Pre-configured functions:
  • adjustable PIR sensitivity (4 levels) in 3 x 120°
  • one or more PIR segments can be disabled
  • event log keeps track of recent changes
• Robust potential-free relay
• Automatic lighting control can be overridden with a 230 V push button - different options available
• Settings and configuration can be locked with a PIN code
• Web based portal solution for back up and distribution of configuration files

Technical data

• Detector technology: PIR
• Input voltage: 230 Vac ± 10 %, 50 Hz
• Detector output: 230 V (ON/OFF)
• Maximum power consumption: 0.2 W
• Maximum MCB rating: 16 A (limited by national installation rules)
• Number of channels: 1 channel
• Light intensity range: 20 lux – 2000 lux, ∞
• Switch-off delay: pulse, 15 s – 2 h, ∞
• Detection angle: 360°
• Detection range (PIR): ø 37 m from a height of 3 m
• Ambient temperature: -25 – +40 °C
• Mounting method: flush-mounting box
• Mounting height: 2 – 3.5 m
• Usage: for indoor use only
• Relay contact: N.O. (max. 10 A), potential-free
• Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
• Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
• Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
• Maximum load low voltage halogen lamps: 500 W
• Maximum load economy lamps (CFLi): 350 W
• Maximum load LED lamps 230 V: 350 W
• Maximum load LED driver: 500 VA
• Maximum load electronic transformer: 500 VA
• Maximum capacitive load: 140 µF
• Maximum switching current: 165 A/20 ms – 800 A/200 µs
• Colour: white (approximately RAL 9010)
• Dimensions (HxWxD): 100 x 100 x 77.2 mm
• Dimensions visible (HxWxD): 100 x 100 x 42.2 mm
• Weight: 132 g
• Maximum range Bluetooth® (free field, depending on the device): 50 m
• Operating frequency: 2.4 GHz
• Maximum radio frequency power: -2 dBm
• Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
• Protection degree: IP20
• Impact resistance: IK04
• Protection class: Class I device
• Halogen-free: yes
• Marking: CE
• Certification marks: SundaHus, Byggvarubedömningen

This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

• Dimensions (HxWxD): 34 x 53 x 53 mm
• Weight: 2 g

Black (RAL 9005).

Compatible articles: 353-700021, 353-700111, 353-700121, 353-701021, 353-701111, 353-701121, 353-701221, 353-750021, 353-750321, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

• Colour: black (approximately RAL 9005)
• Weight: 14 g
