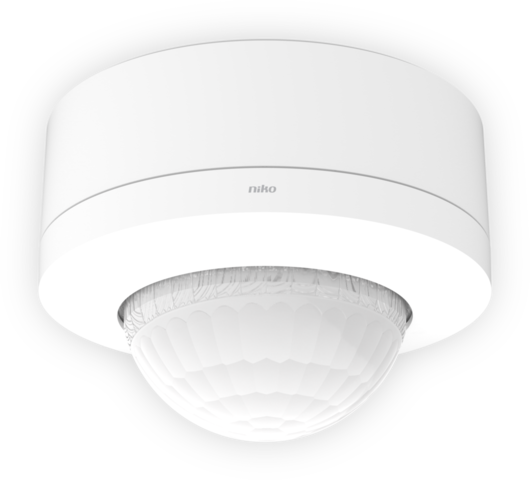

Motion detector M41HC, 230 V, secondary, 18-53 m, IP54, for high ceilings, for surface mounting
This high ceiling detector is a secondary detector that extends the detection range of a high ceiling 230 V master detector. It is designed for surface mounting and has an IP54 protection degree. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Product details
Motion detector M41HC, 230 V, secondary, 18-53 m, IP54, for high ceilings, for surface mounting, white
This high ceiling detector is a secondary detector that extends the detection range of a high ceiling 230 V master detector. It is designed for surface mounting and has an IP54 protection degree. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.
Finishing colour: white
Compatible master detectors: 353-600121, 353-601121, 353-601221, 353-602121, 353-602221, 353-700121, 353-701121, 353-701221, 353-702121, 353-702221, 353-802111
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Motion detector M41HC, 230 V, secondary, 18-53 m, IP54, for high ceilings, for surface mounting, white.
- High ceiling detector for surface mounting
- Quick cabling using screwless and easily accessible plug-in terminals
- User-friendly app for commissioning (iOS/Android)
- 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
- Fitted with three PIR segments, each covering 120°
- Pre-configured functions:
- adjustable PIR sensitivity (4 levels) in 3 x 120°
- one or more PIR segments can be disabled
- event log keeps track of recent changes
- Wireless communication between master and secondary detectors with a repeater function with repeater function
- Settings and configuration can be locked with a PIN code
- IP54 protection degree
Technical data
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: 230 V (ON/OFF)
- Maximum power consumption: 0.2 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Detection angle: 360°
- Detection range (PIR): ø 53 m from a height of 12 m
- Ambient temperature: -25 – +40 °C
- Mounting method: surface mounting
- Mounting height: 4 – 12 m
- Usage: for indoor use only
- Colour: white (approximately RAL 9010)
- Dimensions (HxWxD): 100 x 100 x 70.7 mm
- Dimensions visible (HxWxD): 100 x 100 x 70.7 mm
- Weight: 163 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP54
- Impact resistance: IK03
- Protection class: Class I device
- Halogen-free: yes
- Marking: CE
- Certification marks: SundaHus, Byggvarubedömningen
Accessories
Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)
This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.
Please note: each package contains 5 pieces.
Specification description
Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)
- Dimensions (HxWxD): 34 x 53 x 53 mm
- Weight: 2 g
