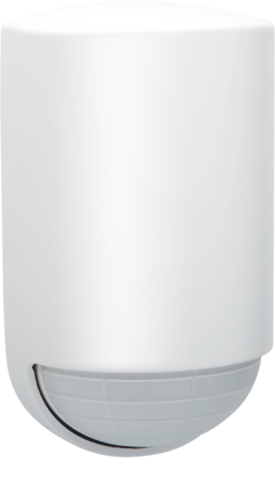

Motion detector, 230 V, 16 m, 180°, IP54, for surface mounting
The outdoor motion detector with one channel to be surface mounted on a wall or partition is suitable for use on driveways and in gardens. Equipped with an integrated light sensor. Automatic on/off (after switch-off delay) or manual on/off via an N.C. push button (to be ordered separately). The detection area can be divided by means of an adjustable cover mask.
Product details
Motion detector, 230 V, 16 m, 180°, IP54, for surface mounting, white
This 1-channel outdoor motion detector is especially suitable for use in a driveway or garden. It was designed to be surface mounted on a wall or partition. The detection range can be set to between 0 and 16 m and can be adapted using the cover mask. The sensor is surface-mounted on the wall. The device has a built-in light sensor and switches the lighting on and off automatically. Manual operation is also possible using the N.C. push button (to be ordered separately). After the pre-set time delay, the light is switched off automatically. This motion detector has an IP54 protection degree and complies with the European directives for EMC and safety, EN 60669-2-1.
Finishing colour: white
Specification description
Motion detector, 230 V, 16 m, 180°, IP54, for surface mounting, white.
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: 230 V (ON/OFF)
- Maximum MCB rating: 10 A (limited by national installation rules)
- Number of channels: 1 channel
- Light intensity range: 5 lux – ∞
- Switch-off delay: test, 1 min – 30 min
- Detection angle: 180°
- Detection range (PIR): 16 m from a height of 3 m
- Ambient temperature: -20 – +45 °C
- Mounting method: surface mounting
- Mounting height: 2 – 3 m
- Usage: for outdoor use
- Relay contact: N.O. (max. 10 A)
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load low voltage halogen lamps: 1200 W
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Dimensions (HxWxD): 125 x 72 x 63 mm
- Protection degree: IP54
- Protection class: Class II device
- Marking: CE
