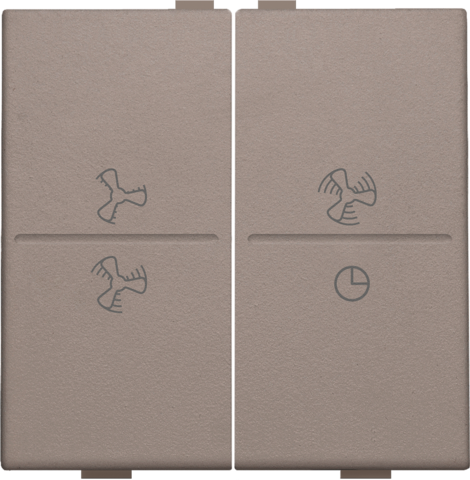

Double key with ventilator symbols 0 to 3 for wireless switch or push button with 4 control buttons, greige
No longer available since February 2023
Description
A double key for ventilator operation for a bus push button. Finishing colour: greige.
Specification description
Double key with ventilator symbols 0 to 3 for wireless switch or push button with 4 control buttons, greige.
- Function: Finishing set for a Nikobus bus push button or a RF wall transmitter.
- Number of control buttons: 4 control buttons
- Material central plate: The central plate is enamelled and made of rigid PC and ASA.
- Colour: greige (coloured in mass, approximately NCS S 5005 - Y50R, RAL 080 60 05)
- Print: The keys on the central plate are printed with the ventilator indication in three positions in indelible print.
- Dismantling: To dismount simply pull the central plate off the mechanism.
- Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
- Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
- Fire safety
- the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
- the plastic parts of the central plate are halogen-free
- Dimensions of finishing: 45 x 45 mm (HxW)
- Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
- Marking: CE
