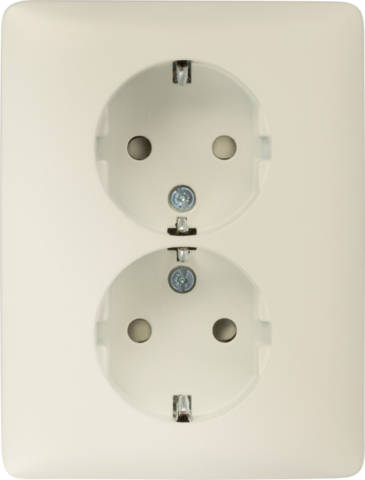

Double socket outlet with side earthing and shutters, vertical, cream

Double socket outlet with side earthing and shutters, vertical, cream

• Type of earthing: side earthing
• Power: 16 A/230 Vac
• Flush-mounting frame
  • 1 mm-thick metal
  • galvanized on all sides
  • with 2 grooves
• Material faceplate: The central plate is made of impact-resistant, dustproof and rigid polycarbonate. The base material is mass-dyed.
• Material earthing: side earthing in high quality brass
• Fixing method
  • with screws for simple fixing in a flush-mounting box with grip surfaces
• Wire connection
  • contact buses fitted with plug-in terminals for clamping the wires
• Earthing wire capacity
  • 2 x 2.5 mm² + 2 x 4 mm² wire in the earthing terminal
• – All plastic components are self-extinguishing (comply with a filament test of 650°C) and are halogen-free.
• Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
• Dimensions (HxWxD): 106.8 x 80 x 63 mm
• Certification marks: KEMA, DEMKO, VDE
• Marking: CE
