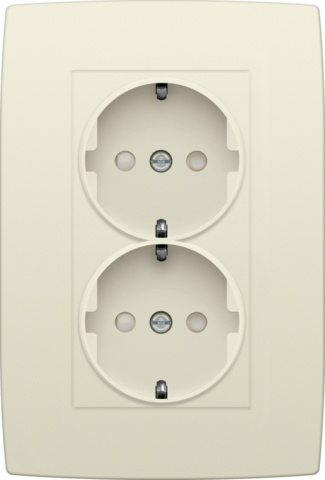

Double socket outlet with side earthing and shutters, vertical, cream
Reference code
100-67845
No longer available since February 2021
No longer available
Certificaten CE-Marking
Specification description
Double socket outlet with side earthing and shutters, vertical, cream
- Colour: cream (mass-dyed, approximately NCS S 1005 - Y10R, RAL 1013)
- Type of earthing: side earthing
- Power: 16 A/250 Vac
- Flush-mounting frame
- 1 mm-thick metal
- galvanized on all sides
- with 2 grooves
- Material faceplate: The central plate is made of impact-resistant, dustproof and rigid polycarbonate. The base material is mass-dyed.
- Material earthing: side earthing in high quality brass
- Fixing method
- with screws for simple fixing in a flush-mounting box with grip surfaces
- Wire connection
- contact buses fitted with plug-in terminals for clamping the wires
- Wire capacity
- 2 x 2.5 mm² per connection terminal
- – All plastic components are self-extinguishing (comply with a filament test of 650°C) and are halogen-free.
- Protection degree: IP20D
- Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP20D
- Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
