Step 2
Adapt push-button dimmer, 3-wire + extra push buttons
Identify the present connection diagram and mark the following wires with labels:
- Phase conductor supplying 230 V
- Wires that lead to the lamp
Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

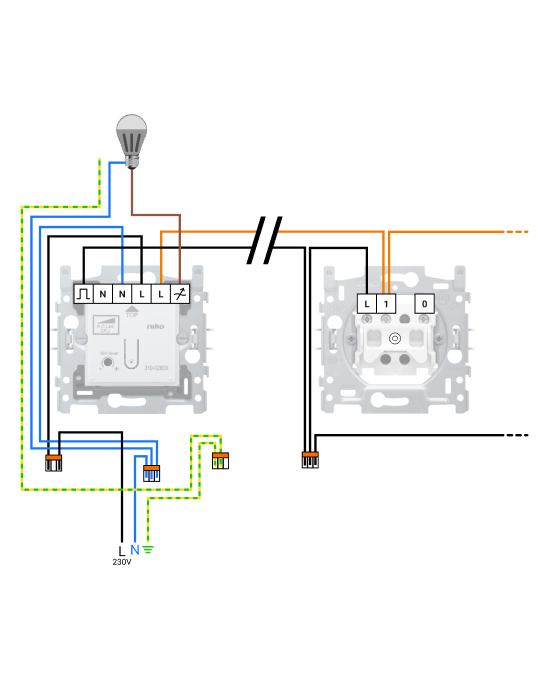

Current connection diagram
Warning: Your connection may look different, this example is only one of the options.

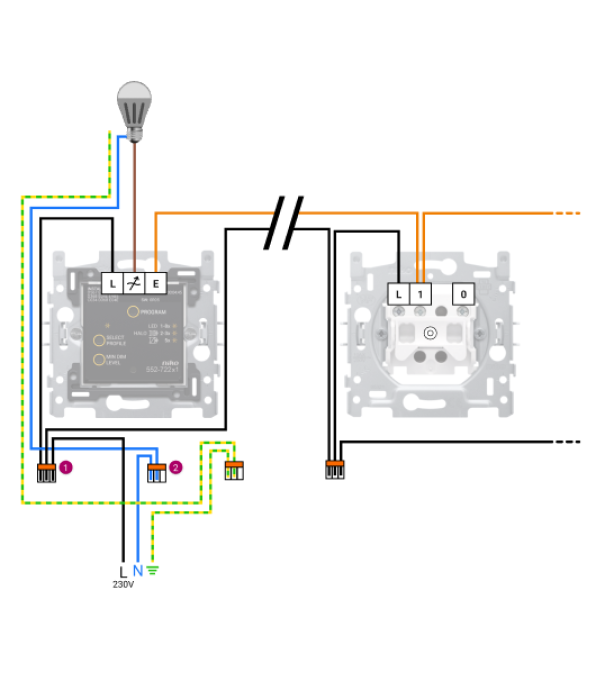

Niko Home Control connection diagram
Connect the connected dimmer.
Warning: Always connect the connected switch directly to the lamp.
Connect the phase conductor ❶ using the connection terminal to the traditional push button. You can leave out the neutral wire ❷, as this is unnecessary in a connected dimmer.
