Step 2

Adapt push-button dimmer, 2-wire + extra push buttons

Identify the present connection diagram and mark the following wires with labels:

  • Phase conductor supplying 230 V
  • Wires that lead to the lamp

Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

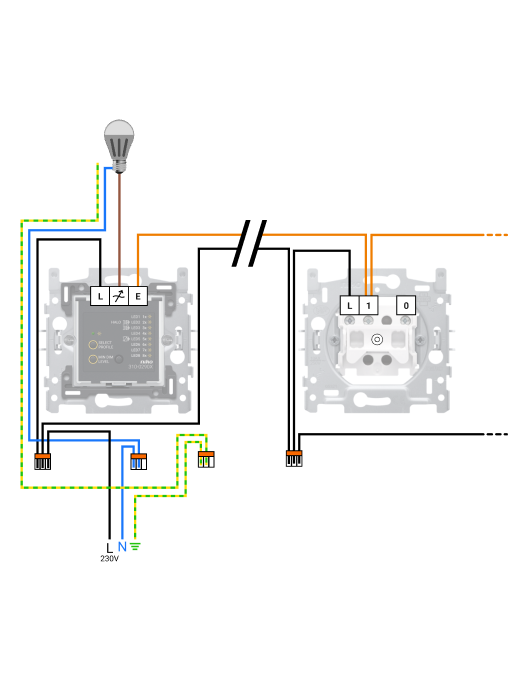

Current connection diagram

Warning: Your connection may look different, this example is only one of the options.

Return to Identify switching

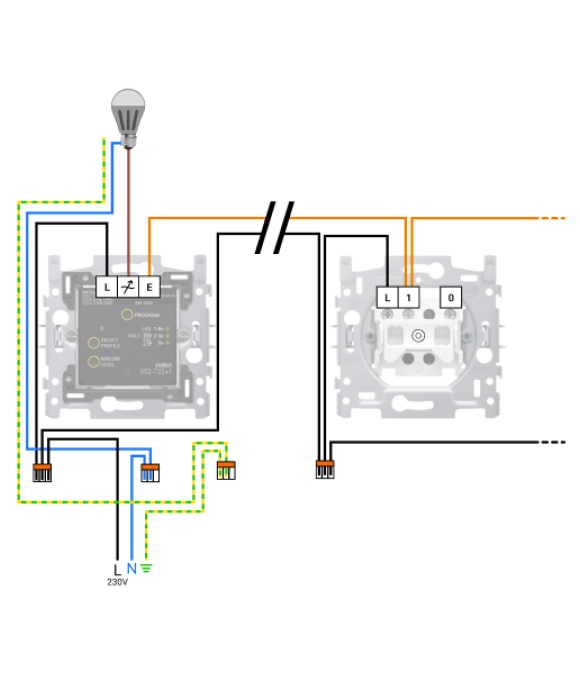

Niko Home Control connection diagram

Connect the connected dimmer.

Warning: Always connect the connected switch directly to the lamp.
