Two single switch functions, horizontal 71 mm centre distance, Niko Rocker
You can download a printable overview of the complete Niko Rocker/Niko Toggle portfolio here. For more information about the design range, visit our inspiration page.
Product details
Base for a two-pole switch, 10 AX/250 Vac, plug-in terminals, claw fixing, to be used with the Niko Rocker or Toggle design range
Mechanism for a two-pole switch, 10 AX/250 Vac. The base is equipped with claw fixing and plug-in terminals. The base has an installation depth of 26 mm.
With a two-pole switch, you can switch a lamp or several lamps connected in parallel on and off. A Niko Rocker or Niko Toggle and faceplate in the colour of your choice must be ordered separately.
Base for a two-pole switch, 10 AX/250 Vac, plug-in terminals, screw fixing, to be used with the Niko Rocker or Toggle design range
Mechanism for a two-pole switch, 10 AX/250 Vac. The base is equipped with screw fixing and plug-in terminals. The base has an installation depth of 26 mm.
With a two-pole switch, you can switch a lamp or several lamps connected in parallel on and off. A Niko Rocker or Niko Toggle and faceplate in the colour of your choice must be ordered separately.
Base for a two-way switch, 10 AX/250 Vac, plug-in terminals, claw fixing, to be used with the Niko Rocker or Toggle design range
Mechanism for a two-way switch, 10 AX/250 Vac. The base is equipped with claw fixing and plug-in terminals. The base has an installation depth of 26 mm.
Two-way switches are used to operate one lamp from two different locations. A Niko Rocker or Niko Toggle and faceplate in the colour of your choice must be ordered separately.
Base for a two-way switch, 10 AX/250 Vac, plug-in terminals, screw fixing, to be used with the Niko Rocker or Toggle design range
Mechanism for a two-way switch, 10 AX/250 Vac. The base is equipped with screw fixing and plug-in terminals. The base has an installation depth of 26 mm.
Two-way switches are used to operate one lamp from two different locations. A Niko Rocker or Niko Toggle and faceplate in the colour of your choice must be ordered separately.
Base for N.O. or N.C. push button with 4 connection terminals, 10 A/250 Vac, plug-in terminals, claw fixing, to be used with the Niko Rocker or Toggle design range
Mechanism for N.O. or N.C. push button with 4 connection terminals, 10 A/250 Vac. The base is equipped with claw fixing and plug-in terminals. The base has an installation depth of 26 mm.
The N.O. or N.C. push button is used to create an action pulse as input for teleruptors and smart home systems. A Niko Rocker or Niko Toggle and faceplate in the colour of your choice must be ordered separately.
Base for N.O. or N.C. push button with 4 connection terminals, 10 A/250 Vac, plug-in terminals, screw fixing, to be used with the Niko Rocker or Toggle design range
Mechanism for N.O. or N.C. push button with 4 connection terminals, 10 A/250 Vac. The base is equipped with screw fixing and plug-in terminals. The base has an installation depth of 26 mm.
The N.O. or N.C. push button is used to create an action pulse as input for teleruptors and smart home systems. A Niko Rocker or Niko Toggle and faceplate in the colour of your choice must be ordered separately.
Base for an intermediate switch, 10 AX/250 Vac, plug-in terminals, claw fixing, to be used with the Niko Rocker or Toggle design range
Mechanism for an intermediate switch, 10 AX/250 Vac. The base is equipped with claw fixing and plug-in terminals. The base has an installation depth of 26 mm.
An intermediate switch can be used to operate one lamp from three or more locations. A Niko Rocker or Niko Toggle and faceplate in the colour of your choice must be ordered separately.
Base for an intermediate switch, 10 AX/250 Vac, plug-in terminals, screw fixing, to be used with the Niko Rocker or Toggle design range
Mechanism for an intermediate switch, 10 AX/250 Vac. The base is equipped with screw fixing and plug-in terminals. The base has an installation depth of 26 mm.
An intermediate switch can be used to operate one lamp from three or more locations. A Niko Rocker or Niko Toggle and faceplate in the colour of your choice must be ordered separately.
Niko Rocker for single switch functions, steel white coated
The Niko Rocker clicks onto the switch part of the single switch function. Click the Rocker set onto the function before you click the Niko Rocker faceplate into place.
The Niko Rocker consists of a click connector made out of high grade, durable plactic that permanently fixes the lever. The lever is made of enamelled aluminium.

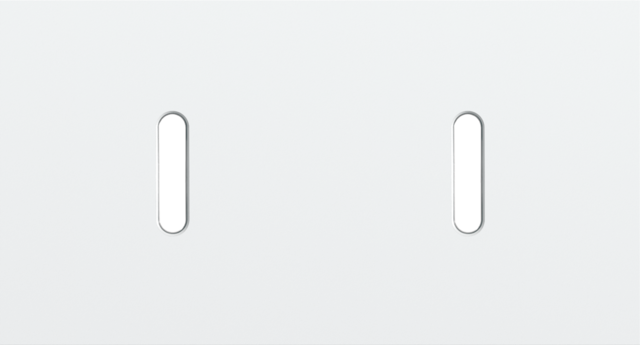

Twofold faceplate, horizontal 71 mm centre distance, for two single switch functions, Niko Rocker steel white coated
The Niko Rocker twofold horizontally oriented faceplateclicks onto two single switch functions that have been vertically installed on top of each other with a centre distance of 71 mm. The faceplate combines with any available Niko Rocker single switch function. It consists of an upper frame, light guide and lower frame that are mechanically interconnected. The upper frame is made of steel. The lower frame is made of white polycarbonate (PC) + acrylic-styrene-acrylate (ASA), white coated. The upper frame is 2 mm thick and the lower fame 6 mm.
Niko recommends a design combination with a finishing set in the following colour: steel white coated.
Accessories
Lighting unit with wires, 24 V, with high-intensity warm white LEDs for switches and push buttons
This lighting unit is equipped with a wire connection, 24 V, and a warm white high-intensity LED used for illuminating switches and push buttons. The use of a high-intensity LED makes this product only suited for Niko Rocker and Niko Toggle switches and push buttons.
Lighting unit with wires, 230 V, with high-intensity warm white LEDs for switches and push buttons
This lighting unit is equipped with a wire connection, 230V, and a warm white high-intensity LED used for illuminating switches and push buttons. The use of a high-intensity LED makes this product only suited for Niko Toggle and Niko Rocker switches and push buttons.
