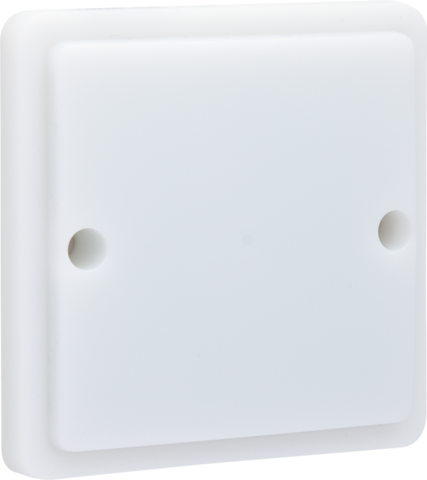

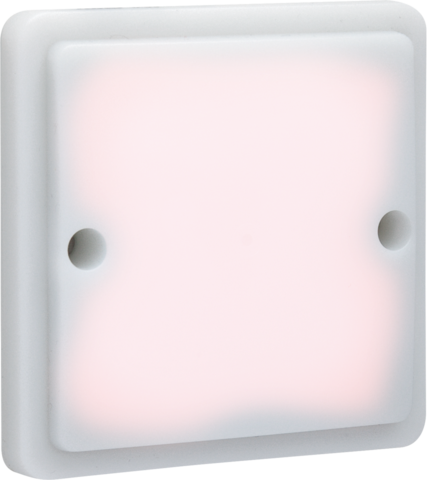

Splashproof signalling device with transparent lens and LEDs (LED colour: red), white

This surface-mounting signalling device is equipped with a transparent cover and LEDs (LED colour: red). It is designed to be mounted in a splashproof mounting box. This device is extremely well-suited for use in damp areas and in ammonia-rich environments. Colour: transparent white

Splashproof signalling device with transparent lens and LEDs (LED colour: red), white.

• Colour: The base material is coloured light grey in mass (approximately NCS S 1502 - B, RAL 7035)
• Sealing: The cover has an integral closure and is hermetically sealed onto the appropriate box.
• LED colour: red
• Number of mechanisms: 1
• Surface-mounting box: The function is designed to be mounted in a splashproof mounting box. The function has an integral closure and is hermetically sealed onto the appropriate box (to be ordered separately).
• Chemical resistance: tested and approved for use in environments with ammonia levels up to 20 ppm
• Ambient temperature: -25 – +55 °C
• Protection degree: IP55 for the combination of a function and a splashproof mounting box
• Impact resistance: The combination of a Hydro mechanism and a flush- or surface-mounting box has an impact resistance of IK07 with a minimum temperature of -25 °C and a maximum temperature of 55 °C
• Certification marks: CEBEC
• Marking: CE
