Central plate data 1x RJ, dark brown coated
Description
Central plate for 1 RJ connection UTP Cat. 5E in a flat model. Finishing colour: dark brown coated.
Specification description
Central plate data 1x RJ, dark brown coated.
- Material central plate: The central plate is enamelled and made of rigid PC and ASA.
- Text field: At the top, the central plate is equipped with a hinged, non-transparent window with label. Dimensions label: 9.5 x 42.4 mm.
- Dismantling: To dismount simply pull the central plate off the mechanism.
- Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
- Fire safety
- the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
- the plastic parts of the central plate are halogen-free
- Dimensions of finishing: 45 x 45 mm (HxW)
- Dimensions (HxWxD): 44.5 x 44.7 x 8.6 mm
- Marking: CE
Related products:

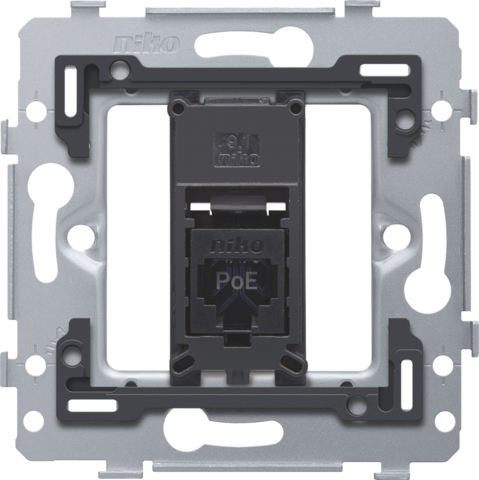

1 RJ45 connection UTP Cat. 6, PoE++ ready, flat model, incl. base 60 x 71 mm with claw fixing
