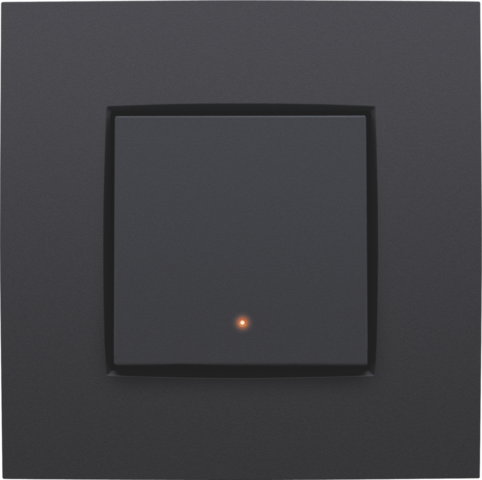

Single push button with LED and comfort sensors

This single push button can be configured to control various actions and routines in a Niko Home Control II installation on bus wiring. It is fitted with programmable LEDs that provide feedback on the action. In addition, the push button can serve as an orientation light when the LEDs are ON.

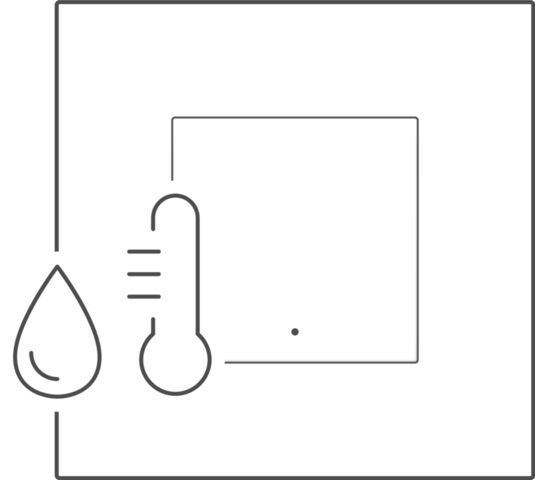

Thanks to its integrated temperature and humidity sensor, the push button also supports multi-zone climate and ventilation control, increasing your energy efficiency and comfort.

  • Its multi-purpose temperature sensor can be set to control a heating/cooling zone within a Niko Home Control II installation, as a basic thermometer, or to create certain conditions (e.g. control sunscreens)
  • The humidity sensor can also be used within routines, for example, to perform automatic ventilation control in a bathroom or toilet

The push button features an easy click-on mechanism for wall-mounted bus wiring controls and is available in all Niko finishings.

Product details

This product consists of several components. Below you will find an overview of all the component parts.

Single push button with LED and comfort sensors for Niko Home Control, cream

Reference code
100-52201

This single push button can be configured to control various actions and routines in a Niko Home Control II installation on bus wiring. It is fitted with programmable LEDs that provide feedback on the action. In addition, the push button can serve as an orientation light when the LEDs are ON.

Thanks to its integrated temperature and humidity sensor, the push button also supports multi-zone climate and ventilation control, increasing your energy efficiency and comfort.

  • Its multi-purpose temperature sensor can be set to control a heating/cooling zone within a Niko Home Control II installation, as a basic thermometer, or to create certain conditions (e.g. control sunscreens)
  • The humidity sensor can also be used within routines, for example, to perform automatic ventilation control in a bathroom or toilet

The push button features an easy click-on mechanism for wall-mounted bus wiring controls and is available in all Niko finishings.

  • 100-52201
    Colour cream
    Reference code 100-52201
  • 101-52201
    Colour white
    Reference code 101-52201
  • 102-52201
    Colour light grey
    Reference code 102-52201
  • 121-52201
    Colour sterling coated
    Reference code 121-52201
  • 122-52201
    Colour anthracite coated
    Reference code 122-52201
  • 123-52201
    Colour bronze coated
    Reference code 123-52201
  • 124-52201
    Colour dark brown coated
    Reference code 124-52201
  • 154-52201
    Colour white coated
    Reference code 154-52201
  • 157-52201
    Colour champagne coated
    Reference code 157-52201
  • 161-52201
    Colour black coated
    Reference code 161-52201
  • 200-52201
    Colour piano black coated
    Reference code 200-52201
  • 220-52201
    Colour blue grey coated
    Reference code 220-52201
  • 221-52201
    Colour gold coated
    Reference code 221-52201

Related products

Connected controller for Niko Home Control II

The connected controller is the central module of every Niko Home Control installation for bus wiring. This module contains firmware that can only be programmed with the Niko Home Control programming software 2.1.1 or higher. It covers all basic functions on which a Niko Home Control installation is built. The basic functions include: • The intelligence directing the logic to the installation. Through the configuration software, the logic is saved locally on the controller. • The power supply module providing an input voltage of 26 V to the bus, the cabinet modules and the controls. Depending on the size of the installation, separate power supply modules can be added. • The connection to Niko Home Control IP devices such as touchscreens and external video units. A built-in router allows the user to connect up to 3 devices directly to the controller. With an extra switch, this number can be increased. • The connection to the internet. This enables the user to control the installation both indoors and outdoors (via mobile networks such as 3G, 4G, GPRS or Wi-Fi hotspot) using mobile devices (smartphones and tablets with iOS or Android). The module has a TEST button to verify the proper functioning and status of all other modules. Each installation must consist of one connected controller. After registration, your installation is connected, enabling control through the app via your smartphone and tablet, and you can enjoy the Niko services for upgrade or diagnosis of the installation.

Digital black, connected customisable control screen, 24 V

Digital black is a customisable control screen for Niko Home Control with an extremely user-friendly interface with clear symbols. The screen is automatically activated when your hand comes near. That way, you can switch or dim your lights, set scenes, set ventilation modes, and adjust blinds and sunblinds to the desired position in one operation. In short, all possible Niko Home Control control types are available. As this Digital black 24 V variant is equipped with a temperature sensor and algorithm, it can be programmed as a zone-thermostat when linked to a Niko Home Control heating cooling module (550-00150) or switching module (550-00103 or 550-00106) programmed for electrical heating. Do you have an active connection with one of our heating partners? Then you can easily set the temperature with Digital black. When Digital black is used as a thermostat, you define the set points and week programs in the Niko Home app. With the Niko Home app you can choose which controls are displayed or where they are displayed on the screen, but also the way you navigate through your control screens. You can download this app for free in the App store or the Google Play store. Digital black can be easily mounted in any standard flush-mounting box using the familiar claw or screw fixing and is powered by a separate 24 Vdc supply (e.g. 340-00050). The screen communicates via your Wi-Fi network with the rest of your Niko Home Control system. You need an active internet connection to activate Digital black. This internet connection ensures that your Digital black and Niko Home Control installation are always up-to-date and have the most recent functionalities.

Power supply

The power supply, in combination with the connected controller, provides an extra input voltage of 26 V to the bus, modules and controls. An extra power supply is only necessary in installations for which the power of the built-in power supply of the connected controller is insufficient. Up to 2 extra power supplies can be connected to installations with a connected controller. The MASTER button is not used, as the built-in power supply of the connected controller is always the master. For more information on the required number of power supplies, you can consult the installation manual.
