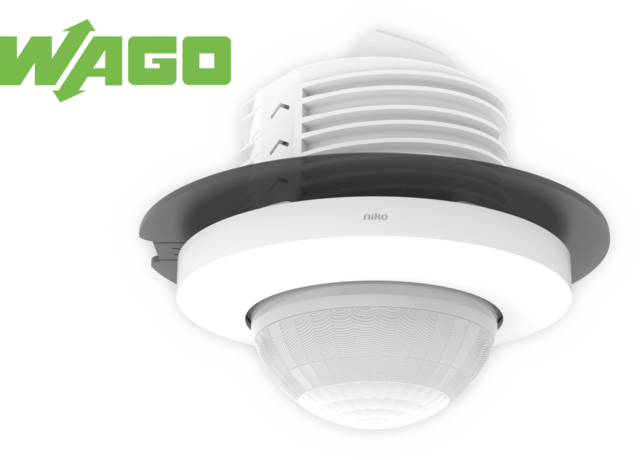

Presence detector P47LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 m cable with 5-pol. connector

This presence detector is a DALI-2 master for DALI lighting control in up to three dimmable daylight zones. Lighting control can be overridden via wireless and battery-free Bluetooth® push buttons. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. The detector is prewired with a cable and a 5-pole female connector that is unique, which helps to avoid installation errors and save time.

This P47 DALI-2 master detector is used in installations with standard daylight control applications, mainly with an automatic ON/OFF function. It is suitable for hallways, corridors, offices, classrooms and meeting rooms. The detection range can be extended with P46 DALI-2 secondary detectors with a 2 m cable and connector. Mind the maximum guaranteed current on the DALI bus.

Use distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.

Finishing colour: white

Compatible secondary detectors: 353-651021-1, 353-751021-1

Compatible controls: 360-21001

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

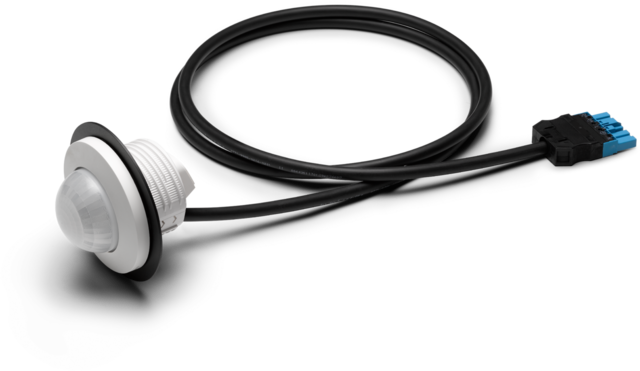

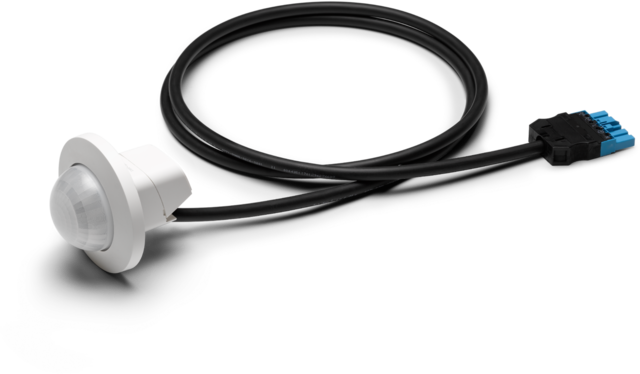

Presence detector P47LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 m cable with 5-pol. connector, white.

• Detector technology: PIR
• Input voltage: 230 Vac ± 10 %, 50 Hz
• Detector output: DALI Broadcast/DALI Addressable
• Maximum power consumption: 0.5 W
• Maximum MCB rating: 16 A (limited by national installation rules)
• Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
• Short circuit behaviour restart period: every 14 s until success
• Maximum voltage on the DALI bus: 15 Vdc
• Maximum guaranteed current on the DALI bus: 100 mA
• Maximum supply current: 250 mA
• Maximum startup time DALI: <1200 ms
• Maximum PIR detection startup time: 1 min 10 s
• Maximum number of secondary detectors: 2
• Maximum number of control gear on the DALI bus: 64
• Maximum number of dimmable zones: 3
• Light intensity range: 20 lux – 2000 lux, ∞
• Switch-off delay: pulse, 20 s – 2 h, ∞
• Detection angle: 360°
• Detection range (PIR): ø 37 m from a height of 3 m
• Ambient temperature: -25 – +40 °C
• Mounting method: flush-mounting (SnapFit)
• Minimum flush-mounting depth: (wrong type for option)
• Drill diameter: 76 mm
• Mounting height: 2 – 3.5 m
• Usage: for indoor use only
• Colour: white (approximately RAL 9010)
• Dimensions (HxWxD): 120 x 120 x 99.1 mm
• Dimensions visible (HxWxD): 100 x 100 x 42.2 mm
• Weight: 357 g
• Maximum range Bluetooth® (free field, depending on the device): 50 m
• Operating frequency: 2.4 GHz
• Maximum radio frequency power: -2 dBm
• Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
• Protection degree: IP20
• Impact resistance: IK04
• Protection class: Class II device
• Halogen-free: yes
• Marking: CE
• Cable specifications
  • cable colour: black
  • length: 2 m
  • wire cross-section: 1,5 mm²
  • voltage: 400 V
  • rated current: 16 A
  • halogen-free: yes
  • ambient temperature: -5 – +40C°
  • type of connector: male, 5-pole, blue

This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

• Dimensions (HxWxD): 34 x 53 x 53 mm
• Weight: 2 g

Black (RAL 9005).

Compatible articles: 353-700021, 353-700111, 353-700121, 353-701021, 353-701111, 353-701121, 353-701221, 353-750021, 353-750321, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

• Colour: black (approximately RAL 9005)
• Weight: 14 g

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2, 353-751521

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

• Weight: 16 g
