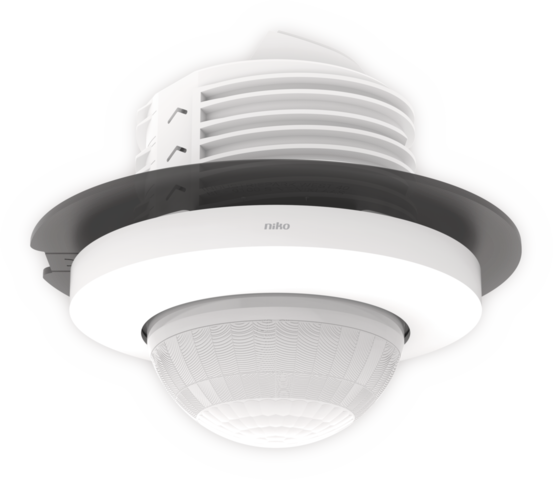

Presence detector P47LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit)

This presence detector is a DALI-2 master detector for DALI lighting control in up to 3 daylight zones. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. The lighting zones are defined during commissioning, using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Finishing colour: white

Compatible secondary detectors: 353-650021, 353-651021, 353-652021, 353-750021, 353-751021, 353-752021, 353-852011

Compatible controls: 170-00005, 170-00015, 170-70015, 170-70005, 360-21001

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Presence detector P47LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), white.

• Daylight control in 1-3 daylight zones
• SnapFit mounting bracket (patent pending) for easy and stable mounting in all types of suspended ceilings with or without removable tiles
• Quick cabling using screwless and easily accessible plug-in terminals
• Screwless strain relief and screwless installation of cable cover
• User-friendly app for commissioning (iOS/Android)
• 2-way Bluetooth® communication ensures quick commissioning and live feedback in the app
• Supports DALI broadcast (default) and DALI addressable
• Fitted with three PIR segments, each covering 120°
• Pre-configured functions:
  • auto configuration when replacing one DALI ballast/DALI device
  • orientation light
  • adjustable power-on level when daylight control is disabled
  • one or more PIR segments can be disabled
  • adjustable PIR sensitivity (4 levels) in 3 x 120°
  • tunable white third-party integration
  • event log keeps track of recent changes
• DALI lighting control can be overridden with a 230 V push button - different options available
• Suitable for controlling up to 64 DALI devices (consider guaranteed current on the DALI bus)
• Settings and configuration can be locked with a PIN code
• Web based portal solution for backing up and exchanging configuration files

Technical data

• Detector technology: PIR
• Input voltage: 230 Vac ± 10 %, 50 Hz
• Detector output: DALI Broadcast/DALI Addressable
• Maximum power consumption: 0.5 W
• Maximum MCB rating: 16 A (limited by national installation rules)
• Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
• Short circuit behaviour restart period: every 14 s until success
• Maximum voltage on the DALI bus: 15 Vdc
• Maximum guaranteed current on the DALI bus: 100 mA
• Maximum supply current: 250 mA
• Maximum startup time DALI: <1200 ms
• Maximum PIR detection startup time: 1 min 10 s
• Maximum number of secondary detectors: 2
• Maximum number of control gear on the DALI bus: 64
• Maximum number of dimmable zones: 3
• Light intensity range: 20 lux – 2000 lux, ∞
• Switch-off delay: pulse, 30 s – 2 h, ∞
• Detection angle: 360°
• Detection range (PIR): ø 37 m from a height of 3 m
• Ambient temperature: -25 – +40 °C
• Mounting method: flush-mounting (SnapFit)
• Minimum flush-mounting depth: (wrong type for option)
• Drill diameter: 76 mm
• Mounting height: 2 – 3.5 m
• Usage: for indoor use only
• Colour: white (approximately RAL 9010)
• Dimensions (HxWxD): 120 x 120 x 99.1 mm
• Dimensions visible (HxWxD): 100 x 100 x 42.2 mm
• Weight: 177 g
• Maximum range Bluetooth® (free field, depending on the device): 50 m
• Operating frequency: 2.4 GHz
• Maximum radio frequency power: -2 dBm
• Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
• Protection degree: IP20
• Impact resistance: IK04
• Protection class: Class II device
• Halogen-free: yes
• Marking: CE
• Certification marks: SundaHus, Byggvarubedömningen

This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

• Dimensions (HxWxD): 34 x 53 x 53 mm
• Weight: 2 g

Black (RAL 9005).

Compatible articles: 353-700021, 353-700111, 353-700121, 353-701021, 353-701111, 353-701121, 353-701221, 353-750021, 353-750321, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

• Colour: black (approximately RAL 9005)
• Weight: 14 g

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2, 353-751521

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

• Weight: 16 g
