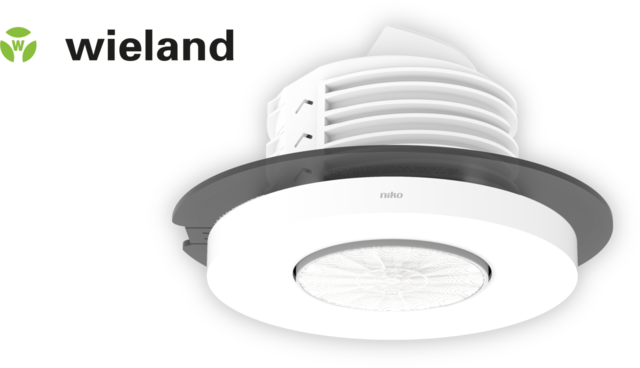

Presence detector P46MR, DALI-2, secondary - BMS, 12-13 m, for flush mounting (SnapFit), Wieland gesis® 2 m cable with 5-pol. connector
This flat and discrete presence detector is a DALI secondary and BMS detector that extends the detection range of a DALI master detector or can be part of a DALI-2 BMS system. If the detector is used as a secondary detector and connected to the DALI bus controlled by a DALI master detector, it will start communicating with this master detector without further commissioning. If it is connected to the DALI bus of a BMS system, the detector needs to be commissioned with the BMS software. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. Moreover, the detector is prewired with a cable and a 5-pole female connector that is unique, which helps to avoid installation errors and save time.
This P46 detector with one cable is suitable for all DALI-2 installations. It can be used to extend the detection range for DALI-2 P47 or P48 master detectors or in combination with a DALI-2 BMS system.
Product details
Presence detector P46MR, DALI-2, secondary - BMS, 12-13 m, for flush mounting (SnapFit), Wieland gesis® 2 m cable with 5-pol. connector, white
This flat and discrete presence detector is a DALI-2 secondary and BMS detector that extends the detection range of a DALI-2 master detector or can be part of a DALI-2 BMS system. If the detector is used as a secondary detector and connected to a the DALI-2 bus controlled by a DALI-2 master detector, it will start communicating with this master detector without further commissioning. If it is connected to the DALI bus of a BMS system, the detector needs to be commissioned with the BMS software. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. The detector is prewired with a 2 m cable and a 5-pole female connector that is unique, which helps to avoid installation errors and save time.
This P46 detector with one cable is suitable for all DALI-2 installations. It can be used to extend the detection range for DALI-2 P47 or P48 master detectors or in combination with a DALI-2 BMS system.
Finishing colour: white
This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
Specification description
Presence detector P46MR, DALI-2, secondary - BMS, 12-13 m, for flush mounting (SnapFit), Wieland gesis® 2 m cable with 5-pol. connector, white.
- Detector technology: PIR
- Input voltage: via the DALI bus
- Detector output: DALI-2
- Maximum current consumption: 28.1 mA
- Nominal current consumption (12 V, 25°C), Bluetooth® enabled: 8.1 mA
- Nominal current consumption (12 V, 25°C), Bluetooth® disabled: 5 mA
- Maximum MCB rating: 16 A (limited by national installation rules)
- Maximum startup time DALI: <1200 ms
- Maximum PIR detection startup time: 1 min 10 s
- Light intensity range: 0 lux – 10360 lux
- Detection angle: 360°
- Detection range (PIR): ø 12 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting (SnapFit)
- Minimum flush-mounting depth: (wrong type for option)
- Drill diameter: 76 mm
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Colour: white (approximately RAL 9010)
- Dimensions (HxWxD): 120 x 120 x 66.4 mm
- Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
- Weight: 415 g
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication - BMS software
- Protection degree: IP20
- Impact resistance: IK02
- Protection class: Class II device
- Halogen-free: yes
- Marking: CE

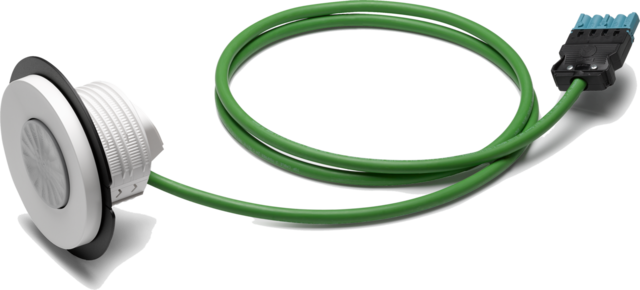

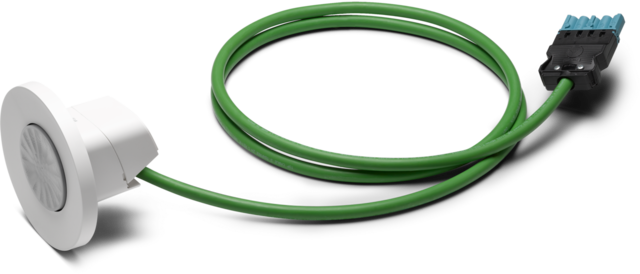

- Cable specifications
- cable colour: green
- length: 2 m
- wire cross-section: 1,5 mm²
- voltage: 250 V
- rated current: 16 A
- halogen-free: yes
- ambient temperature: -5 – +70C°
- type of connector: male, 5-pole, blue
