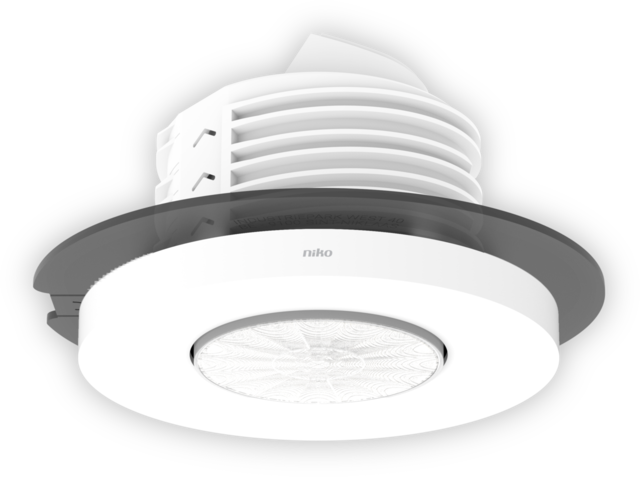

Presence detector P41MR, 230 V, secondary, 12-13 m, for flush mounting (SnapFit)

This flat and discrete presence detector is a secondary detector that extends the detection range of a 230 V master detector. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Finishing colour: white

Compatible master detectors: 353-600121, 353-601121, 353-601221, 353-602121, 353-602221, 353-700121, 353-701121, 353-701221, 353-702121, 353-702221, 353-802111

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Presence detector P41MR, 230 V, secondary, 12-13 m, for flush mounting (SnapFit), white.

• Flat and discrete design
• SnapFit mounting bracket for easy and stable mounting in all types of suspended ceilings with or without removable tiles
• Quick cabling using screwless and easily accessible plug-in terminals
• Screwless strain relief and screwless installation of cable cover
• User-friendly app for settings (iOS/Android)
• 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
• Pre-configured functions:
  • adjustable PIR sensitivity (4 levels)
  • event log keeps track of recent changes
• Wireless communication between master and secondary detectors with a repeater function
• Settings and configuration can be locked with a PIN code

Technical data

• Detector technology: PIR
• Input voltage: 230 Vac ± 10 %, 50 Hz
• Detector output: 230 V (ON/OFF)
• Maximum power consumption: 0.2 W
• Maximum MCB rating: 16 A (limited by national installation rules)
• Detection angle: 360°
• Detection range (PIR): ø 12 m from a height of 3 m
• Ambient temperature: -25 – +40 °C
• Mounting method: flush-mounting (SnapFit)
• Minimum flush-mounting depth: (wrong type for option)
• Drill diameter: 76 mm
• Mounting height: 2 – 3.5 m
• Usage: for indoor use only
• Colour: white (approximately RAL 9010)
• Dimensions (HxWxD): 120 x 120 x 66.4 mm
• Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
• Weight: 142 g
• Maximum range Bluetooth® (free field, depending on the device): 50 m
• Operating frequency: 2.4 GHz
• Maximum radio frequency power: -2 dBm
• Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
• Protection degree: IP20
• Impact resistance: IK02
• Protection class: Class I device
• Halogen-free: yes
• Marking: CE
• Certification marks: SundaHus, Byggvarubedömningen

This lens cover is designed to minimise the detection range of P4XMR and M4XMR detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)

• Dimensions (HxWxD): 5 x 53 x 53 mm
• Weight: 1 g

Black (RAL 9005).

Compatible articles: 353-600021, 353-600111, 353-600121, 353-601021, 353-601111, 353-601121, 353-601221, 353-650021, 353-650321, 353-650521, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-750521, 353-751521

Deco ring for flush-mounted P4XMR and M4XMR detectors, black

• Colour: black (approximately RAL 9005)
• Weight: 16 g

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2, 353-751521

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

• Weight: 16 g
