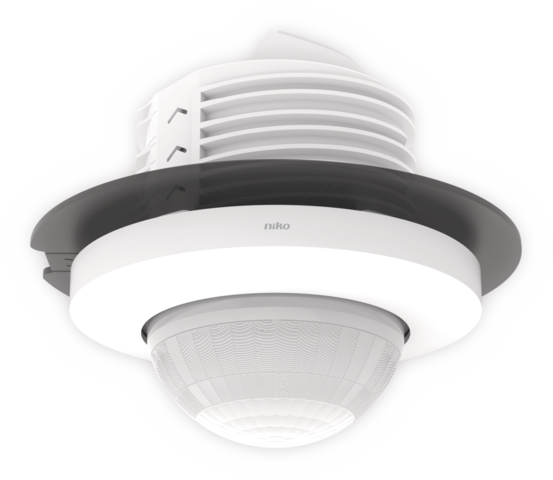

Presence detector P41LR, 230 V, secondary, 32-37 m, for flush mounting (SnapFit)

This presence detector is a secondary detector that extends the detection range of a 230 V master detector. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Product details

This product consists of several components. Below you will find an overview of all the component parts.
Technical datasheets
Technical manuals
Environmental declarations
EU declaration of conformity

Presence detector P41LR, 230 V, secondary, 32-37 m, for flush mounting (SnapFit), white

Reference code
353-701021

This presence detector is a secondary detector that extends the detection range of a 230 V master detector. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Finishing colour: white

Compatible master detectors: 353-600121, 353-601121, 353-601221, 353-602121, 353-602221, 353-700121, 353-701121, 353-701221, 353-702121, 353-702221, 353-802111

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Specification description

Presence detector P41LR, 230 V, secondary, 32-37 m, for flush mounting (SnapFit), white.

  • SnapFit mounting bracket for easy and stable mounting in all types of suspended ceilings with or without removable tiles
  • Quick cabling using screwless and easily accessible plug-in terminals
  • Screwless strain relief and screwless installation of cable cover
  • User-friendly app for commissioning (iOS/Android)
  • 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
  • Fitted with three PIR segments, each covering 120°
  • Pre-configured functions:
    • adjustable PIR sensitivity (4 levels) in 3 x 120°
    • one or more PIR segments can be disabled
    • event log keeps track of recent changes
  • Wireless communication between master and secondary detectors with a repeater function
  • Settings and configuration can be locked with a PIN code

Technical data

  • Detector technology: PIR
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: 230 V (ON/OFF)
  • Maximum power consumption: 0.2 W
  • Maximum MCB rating: 16 A (limited by national installation rules)
  • Detection angle: 360°
  • Detection range (PIR): ø 37 m from a height of 3 m
  • Ambient temperature: -25 – +40 °C
  • Mounting method: flush-mounting (SnapFit)
  • Minimum flush-mounting depth: 56.9 mm
  • Drill diameter: 76 mm
  • Mounting height: 2 – 3.5 m
  • Usage: for indoor use only
  • Colour: white (approximately RAL 9010)
  • Dimensions (HxWxD): 120 x 120 x 99.1 mm
  • Dimensions visible (HxWxD): 100 x 100 x 42.2 mm
  • Weight: 174 g
  • Maximum range Bluetooth® (free field, depending on the device): 50 m
  • Operating frequency: 2.4 GHz
  • Maximum radio frequency power: -2 dBm
  • Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
  • Protection degree: IP20
  • Impact resistance: IK04
  • Protection class: Class I device
  • Halogen-free: yes
  • Marking: CE
  • Certification marks: SundaHus, Byggvarubedömningen

Accessories

Technical datasheets
EU declaration of conformity

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

Reference code
353-999879

This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Specification description

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

  • Dimensions (HxWxD): 34 x 53 x 53 mm
  • Weight: 2 g
Technical datasheets
EU declaration of conformity

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

Reference code
353-991992

Black (RAL 9005).

Compatible articles: 353-700021, 353-700111, 353-700121, 353-701021, 353-701111, 353-701121, 353-701221, 353-750021, 353-750321, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Specification description

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

  • Colour: black (approximately RAL 9005)
  • Weight: 14 g
Technical datasheets
EU declaration of conformity

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

Reference code
353-991901

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2, 353-751521

Specification description

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

  • Weight: 16 g
