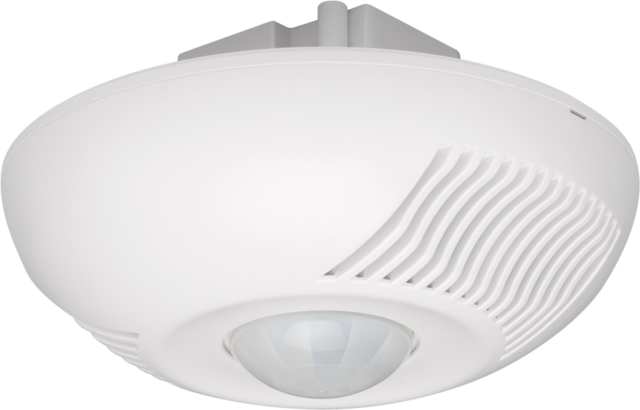

Presence detector, dual tech, PIR+US, 230 V, secondary, 9.5 m / 19 m, for flush-mounting box
Intelligent presence detector for ceiling mounting in offices. Suitable for switching indoor lighting. Fast detection, up to the slightest movements, by passive infrared technology (PIR) and ultrasonic technology (US). Presence detection behind office walls by means of US detection. The detection area can be divided by means of an adjustable cover mask.
Product details
Presence detector, dual tech, PIR+US, 230 V, secondary, 9.5 m / 19 m, for flush-mounting box, white
This (secondary) intelligent presence detector is suitable for ceiling mounting in offices. It quickly detects the smallest movements thanks to its passive infrared (PIR) and ultrasonic (US) beams. The device automatically adjusts its sensitivity to the movements registered. The detection range is 360°. The detection range can be adjusted using the cover mask. The device has an IP20 protection degree.
Finishing colour: white
Compatible master detectors: 350-20065
Specification description
Presence detector, dual tech, PIR+US, 230 V, secondary, 9.5 m / 19 m, for flush-mounting box, white.
- Detector technology: ultrasonic
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: 230 V (ON/OFF)
- Maximum MCB rating: 10 A (limited by national installation rules)
- Detection angle: 360°
- Detection range (PIR): ø 9.5 m from a height of 3 m
- Detection range (US): 12 x 19 m from a height of 3 m
- Ambient temperature: 0 – 45 °C
- Mounting method: flush-mounting box
- Mounting height: 2 – 3 m
- Usage: for indoor use only
- Dimensions (HxWxD): 120 x 120 x 60 mm
- Dimensions visible (HxWxD): 120 x 120 x 34 mm
- Protection degree: IP20
- Protection class: Class I device
- Marking: CE
- Certification marks: SundaHus
Accessories
Flush mounting box with spring clips
Flush-mounting box with spring clips for ceiling mounting of detectors
Compatible articles: 350-20056, 350-20065, 350-20066, 350-20070, 350-20071, 350-41730, 350-41734
Specification description
Flush mounting box with spring clips
Flush-mounting box for ceiling mounting of detectors. Provided with spring clips for easy mounting in false ceilings.
