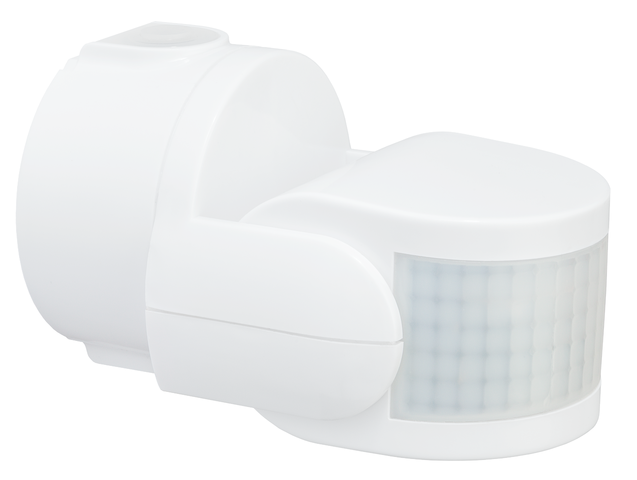

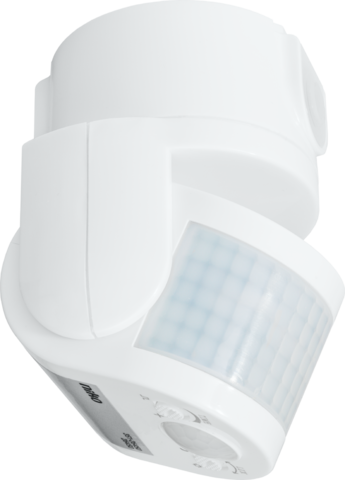

Motion detector, 230 V, 12 m, 200°, IP55, for wall and ceiling mounting, for surface mounting, white

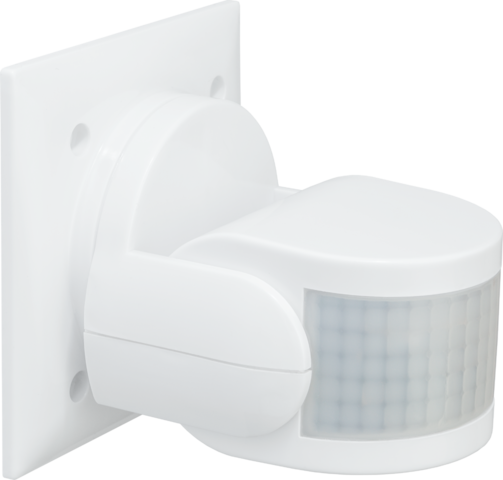

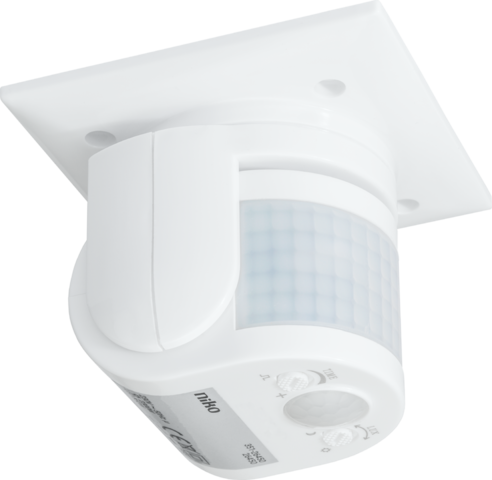

This 1-channel outdoor motion detector with a detection range of 14 metres is suitable for use along driveways, under carports or in the garden. The motion detector can be mounted onto the ceiling or the wall and can be aimed upwards or downwards. The device has a built-in light sensor and switches the lighting automatically. After the pre-set time delay, the light is switched off automatically.

Finishing colour: white

Motion detector, 230 V, 12 m, 200°, IP55, for wall and ceiling mounting, for surface mounting, white.

• Detector technology: PIR
• Input voltage: 230 Vac ± 10 %, 50 Hz
• Detector output: 230 V (ON/OFF)
• Maximum MCB rating: 10 A (limited by national installation rules)
• Number of channels: 1 channel
• Light intensity range: 5 lux – 2000 lux
• Switch-off delay: pulse, 10 s – 20 min
• Detection angle: 200°
• Detection range (PIR): 12 m from a height of 3 m
• Ambient temperature: -20 – +55 °C
• Mounting method: surface mounting
• Mounting height: 2 – 8 m
• Usage: for outdoor use
• Relay contact: N.O. (max. 10 A)
• Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
• Maximum load low voltage halogen lamps: 1150 W
• Maximum load economy lamps (CFLi): 350 W
• Maximum load LED lamps 230 V: 350 W
• Dimensions (HxWxD): 63 x 63 x 94 mm
• Protection degree: IP55
• Protection class: Class II device
• Marking: CE
