This article is (or will soon be) unavailable. It has been replaced by the following article(s):

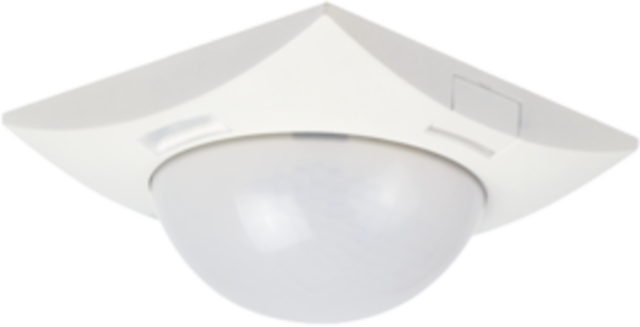

Presence detector, KNX®, 4 channels, 16 m, for flush-mounting box

Reference code
351-25038

No longer available since September 2022

Technical datasheets
Technical manuals
EU declaration of conformity

Description

The presence detector with four channels and daylight control for flush-mounting box in ceilings is suitable for switching the indoor lighting on and off. The detector is equipped with an integrated light sensor and is only compatible with KNX®.

Finishing colour: white

Specification description

Presence detector, KNX®, 4 channels, 16 m, for flush-mounting box.

  • Detector technology: PIR
  • Input voltage: 30 Vdc via KNX®-bus
  • Detector output: KNX®
  • Maximum power consumption: 0.3 W
  • Maximum current consumption: 10 mA
  • Number of channels: 4 channels
  • Light intensity range: 10 lux – 2000 lux
  • Switch-off delay: 1 s – 4 h
  • Detection angle: 360°
  • Detection range (PIR): ø 16 m from a height of 3 m
  • Ambient temperature: -20 – +40 °C
  • Mounting method: flush-mounting box
  • Mounting height: 2 – 8 m
  • Usage: for indoor use only
  • Dimensions (HxWxD): 88 x 88 x 47 mm
  • Dimensions visible (HxWxD): 88 x 88 x 35 mm
  • Modification of settings: ETS software
  • Protection degree: IP20
  • Impact resistance: IK02
  • Protection class: Class III device
  • Marking: CE
