This article is (or will soon be) unavailable. It has been replaced by the following article(s):

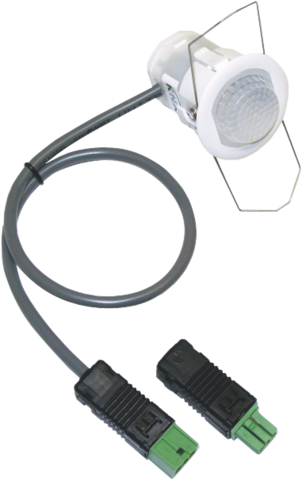

Motion detector, KNX®, 2 channels, 8 m, IP54, for flush mounting

Reference code
351-25010

No longer available since September 2022

Technical datasheets
EU declaration of conformity

Description

Master-secondary motion detector, ideal for mounting in profile rails or wet rooms. Daylight control for 2 zones, 1 secondary zone (ON/OFF), HVAC, brightness threshold and switch-off delay adjustable during operation, orientation light, full and semi-automatic mode.

Finishing colour: white

Specification description

Motion detector, KNX®, 2 channels, 8 m, IP54, for flush mounting.

  • Detector technology: PIR
  • Input voltage: 30 Vdc via KNX®-bus
  • Detector output: KNX®
  • Maximum power consumption: 0.3 W
  • Maximum current consumption: 10 mA
  • Number of channels: 2 channels
  • Light intensity range: 10 lux – 2000 lux
  • Switch-off delay: 1 s – 24 min
  • Detection angle: 360°
  • Detection range (PIR): ø 8 m from a height of 4 m
  • Ambient temperature: -20 – +40 °C
  • Mounting method: flush-mounting
  • Drill diameter: 38 mm
  • Mounting height: 2 – 5 m
  • Usage: for indoor use only
  • Dimensions (HxWxD): 44 x 44 x 51 mm
  • Dimensions visible (HxWxD): 8 mm
  • Modification of settings: ETS software
  • Protection degree: IP54
  • Impact resistance: IK02
  • Marking: CE
