DALI-2 modular relay module

This modular relay module enables you to control non-dimmable 230 V loads via a DALI bus. It allows lighting ballasts with no DALI interface to be switched ON and OFF by DALI commands. The maximum switching current of the relay module is 8 A. The lifetime of the integrated relay contact is extended by zero-cross switching technology. The relay module fulfils DALI requirements IEC 62386 parts 102 (control gear) and 208 (DALI device type 7). The DALI addressing and configuration can be done via the Niko detector tool app. The DALI relay module is directly connected to and powered by the DALI bus. Note that a separate DALI bus power supply is required. The DALI-2 relay module is DIN-rail mounted in an electrical distribution board.

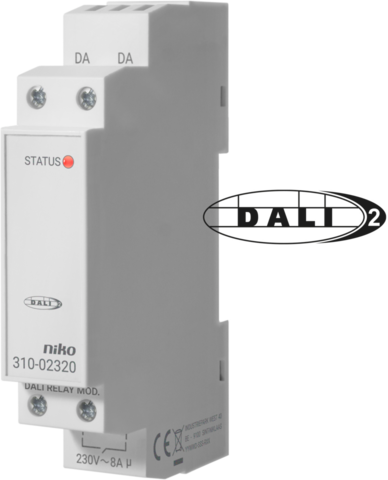

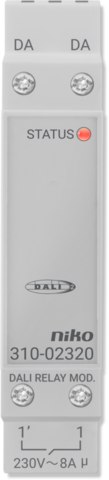

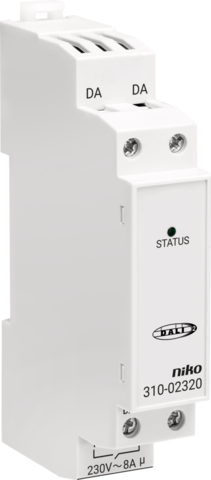

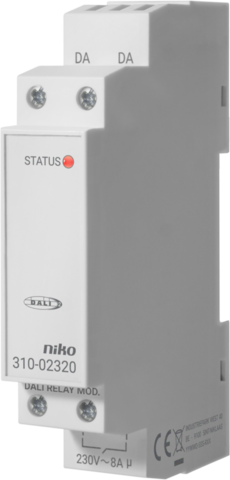

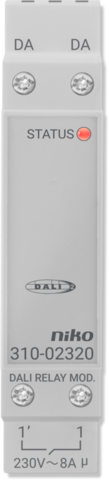

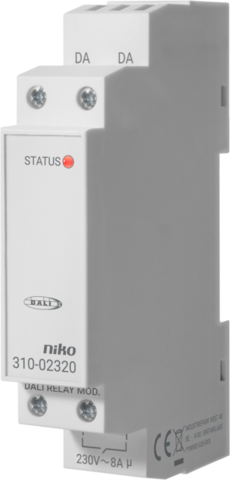

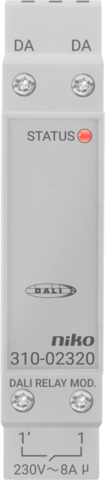

DALI-2 modular relay module.

• Configuration: DALI, DALI-2
• Maximum switching current, cosφ = 0.6: 8 A
• Maximum switching frequency: 1 Hz
• Lighting element: equipped with a green LED to indicate the relay state
• Input voltage: via the DALI bus
• Nominal current consumption (12 V, 25°C): 2.7 mA
• Maximum MCB rating: 10 A (limited by national installation rules)
• Ambient temperature: -20 – +60 °C
• Usage: for indoor use only
• Relay contact: N.O. (max. 8 A), potential-free
• Stripping length
  • 7 mm stripping length

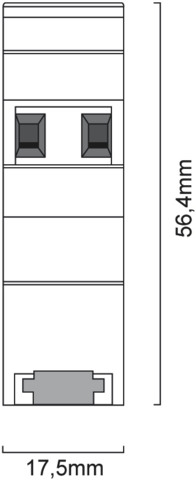

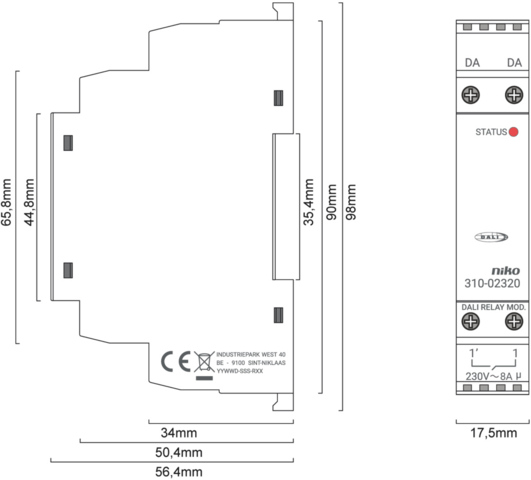

• Dimensions (HxWxD): 17.5 x 56.4 x 98 mm
• Modification of settings: Niko detector tool app (in combination with Niko DALI-2 detectors), BMS software (in combination with Niko DALI-2 BMS detectors) or manually (in stand-alone mode)
• Protection degree: IP20
• Impact resistance: IK02
• Marking: CE
