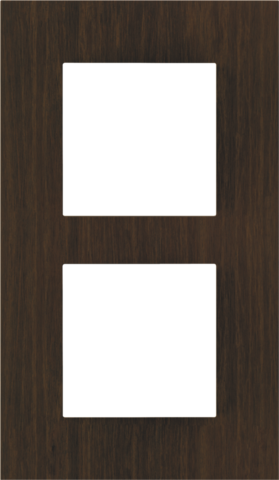

Twofold faceplate, 60 mm centre distance, vertical, Niko Pure dark bamboo on anthracite

Reference code
256-76200

No longer available since December 2022

Description

Twofold faceplate with 60 mm centre-to-centre distance, vertical, from the range Niko Pure. Niko Pure dark bamboo on anthracite

Specification description

Twofold faceplate, 60 mm centre distance, vertical, Niko Pure dark bamboo on anthracite.

  • Double faceplate for two switches.
  • Colour: dark bamboo on anthracite (approximately NCS S 8010 - Y90R, RAL 050 20 16)
  • Frame composition: It consists of an upper frame and lower frame that are mechanically interconnected.
  • Material upper frame: Dark bamboo on antracite
  • Material lower frame: The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA).
  • Frame thickness: The upper frame is 6 mm thick and the lower frame 2 mm.
  • Centre-to-centre distance: 60 mm
  • Surface-mounting height: max. 8.5 mm
  • Fire safety
    • the complete faceplate is halogen-free.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Dimensions (HxWxD): 143 x 83 x 8.9 mm
  • Certification marks: CEBEC
  • Marking: CE
