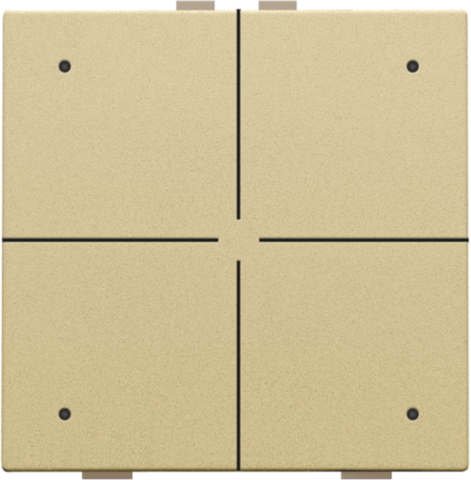

Fourfold push button with LED for Niko Home Control, gold coated

This push button allows you to perform four operations. It is attached to the wall-mounted printed circuit board via a click mechanism. An LED indicates whether the light is switched on or off. Switch including button. Finishing colour: gold coated.

Fourfold push button with LED for Niko Home Control, gold coated.

• Material central plate: The central plate is enamelled and made of rigid PC and ASA.
• Lens: On the external corner of the four keys on the push button there is a small amber-coloured LED (1.5 x 1.5 mm) to indicate the status of the action.
• Colour: enamelled gold (approximately NCS S 3020 - Y, RAL 1000)
• Fire safety
  • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
  • the plastic parts of the central plate are halogen-free
• Input voltage: 26 Vdc (SELV, safety extra-low voltage)
• Dismantling: To dismount simply pull the push button off the wall-mounted printed circuit board.
• Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
• Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
• Marking: CE
