This article is (or will soon be) unavailable. It has been replaced by the following article(s):

The new push button is equipped with LEDs and comfort sensors.

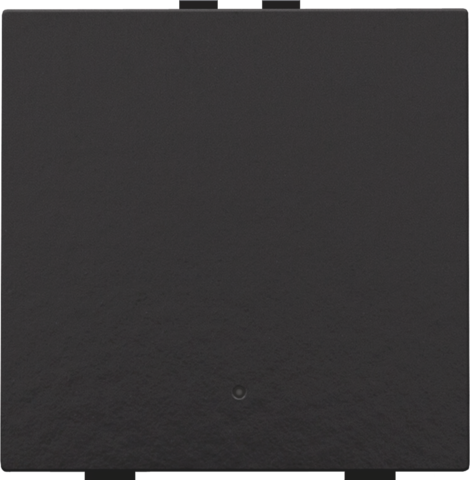

Single push button with LED for Niko Home Control, piano black coated

Reference code
200-52001

This product is available while stocks last.

Technical datasheets
Certificaten CE-Marking

Description

You can perform one operation with this push button. It is attached to the wall-mounted printed circuit board via a click mechanism. An LED indicates whether the light is switched on or off. Switch including button. Finishing colour: piano black coated.

Specification description

Single push button with LED for Niko Home Control, piano black coated.

  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Lens: The key on the push button is fitted at the bottom with a small amber-coloured LED (1.5 x 1.5 mm) to indicate the status of the action.
  • Colour: enamelled Bakelite®-look piano black (approximately NCS S 9000 N, RAL 9005). Bakelite® is a registered trademark of Hexion GmbH
  • Fire safety
    • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
    • the plastic parts of the central plate are halogen-free
  • Input voltage: 26 Vdc (SELV, safety extra-low voltage)
  • Dismantling: To dismount simply pull the push button off the wall-mounted printed circuit board.
  • Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
  • Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
  • Marking: CE
