Base for single-pole control switch with 3 connection terminals, 10 AX/250 Vac, plug-in terminals

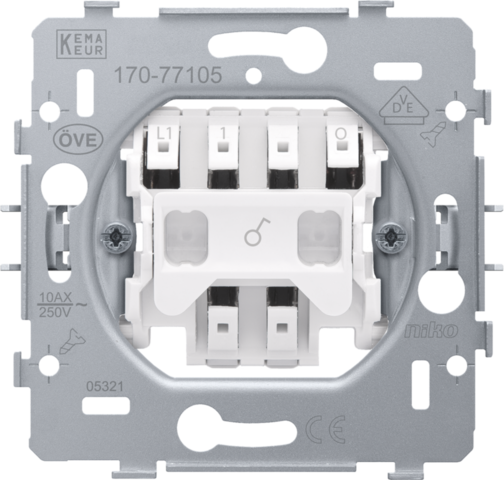

Mechanism for a single-pole control switch, with 3 connection terminals, with claw fixing. This switch can be equipped with an indicator lamp (available as accessory) which indicates whether the light is switched on or not. A finishing set and faceplate in the colour of your choice must be ordered separately.

Base for single-pole control switch with 3 connection terminals, 10 AX/250 Vac, plug-in terminals.

• Number of control buttons: 1 push- button + LED
• Maximum MCB rating: 16 A (limited by national installation rules)
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• SBL load: 100 W
• Material base
  • ureumformaldehyde (UF) with high heat resistance
  • white RAL9010 (approximately)
• Flush-mounting frame
  • 1 mm-thick metal
  • galvanized on all sides after cutting, even on the cut edges
  • with 4 grooves with screw hole of 7 mm
  • with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm for mounting on panels
• Required type of flush-mounting box
  • depth: min. 40 mm (cabling space included)
  • claw/screw fixing: 60 mm
  • inner diameter box: 60 mm
  • multiple boxes centre distance horizontal: 71 mm
  • multiple boxes centre distance vertical: 71 mm
  • multiple boxes centre distance vertical: 60 mm for Belgium and France
• Fixing method
  • simple mounting in a flush-mounting box with grip surfaces
  • with claws that rotate open using screws with a combination screwhead (Pz1 or slot 1 x 5 mm), for mounting in a flush-mounting box with grip surfaces
  • engagement depth of claws: 31 mm
  • claws can be pushed back into their original position
  • claws can be easily pushed out using a screwdriver
• Centre-to-centre distance
  • horizontal coupling and vertical coupling with centre-to-centre distance 71 mm
  • horizontal connection of several bases is quick and perfect thanks to the folded-up dovetails on the left and right side
  • extra robustness due to the folded-up edges on the outside of the base and the continuation to the inside of the base
• End border: 4 rectangular openings (7 x 2.5 mm) which, if the flush-mounting box protrudes from the plasterwork, can compensate for a margin of between 1 and 1.2 mm, so that the faceplate can still butt up perfectly against the wall
• Wire connection
  • contact buses fitted with plug-in terminals for clamping the wires
• Stripping length
  • 12 mm stripping length
  • indelibly indicated at the rear side: stripping length and wiring diagram
  • indelibly indicated at the front side: terminals and switch symbol
• Lighting element
  • the base is provided with 2 rectangular recesses for a lighting unit
  • left recess (front view): a lighting unit with wires can be clicked in
• Ambient temperature: -5 – +40 °C
• Dimensions (HxWxD): 73 x 73 mm
• Certification marks: CEBEC, SEMKO, VDE, DEMKO, NF, KEMA, ÖVE
• Marking: CE
