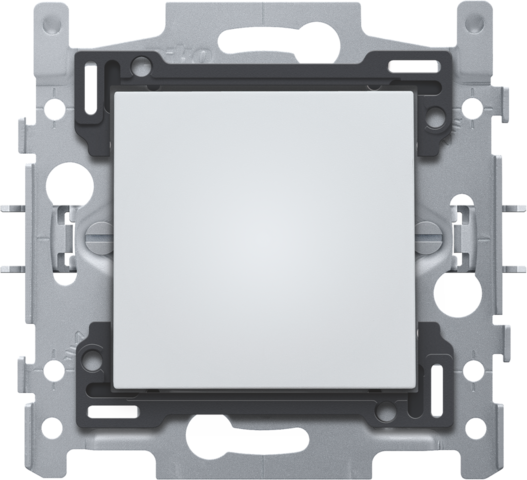

Orientation lighting with blue LEDs, 270 lux, claw fixing

Switch for orientation lighting with blue LEDs 270 lux, with claw fixing. A faceplate in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Orientation lighting with blue LEDs, 270 lux, claw fixing.

• LED colour: blue
• Light intensity at the diffuser: 270 lux
• Fire safety
  • All plastic components are self-extinguishing (comply with a filament test of 650°C) and are halogen-free.
• Power consumption: 0,6 W
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Light output: 0.62 lumen
• Flush-mounting frame
  • 1 mm-thick metal
  • galvanized on all sides after cutting, even on the cut edges
  • with 4 grooves with screw hole of 7 mm
  • with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm for mounting on panels
• Fixing method
  • simple mounting in a flush-mounting box with grip surfaces
  • with claws that rotate open using screws with a combination screwhead (Pz1 or slot 1 x 5 mm), for mounting in a flush-mounting box with grip surfaces
  • engagement depth of claws: 31 mm
  • claws can be pushed back into their original position
  • claws can be easily pushed out using a screwdriver
• Centre-to-centre distance
  • Simple and quick assembly of one or more mechanisms by the indication (chalk line, laser, etc.) of the centre of the flush-mounting frame
  • vertical coupling centre-to-centre distance 60 mm by sliding several bases into each other, they lock themselves automatically
  • vertical coupling centre-to-centre distance 71 mm using pre-formed lips at the bottom, by folding the lips downwards over a length of 1 mm, the bases support each other and the centre-to-centre distance is guaranteed.
  • horizontal connection of multiple bases is quick and perfect thanks to the folded-up dovetails on the left and right sides
  • extra robustness due to the folded-up edges on the outside of the base and the continuation into the inside of the base
• End border: The flush-mounting frame is equipped, both on the top and the bottom, with a dark grey, plastic end border. This border is made of PC+ASA and is joined to the flush-mounting frame using a melting process. The corners of the two end borders are equipped with rectangular openings (7.9 x 1.5 mm) each containing a multi-positional snap hook. Thanks to the snap hooks, the 4 rectangular openings ensure that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The end borders also have 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate.
• Wire connection
  • contact buses fitted with plug-in terminals for clamping the wires
• Wire capacity
  • up to 2 x 2.5 mm² wire per terminal
• Ambient temperature: -5 – +40 °C
• Dimensions (HxWxD): 71 x 73 mm
• Marking: CE
