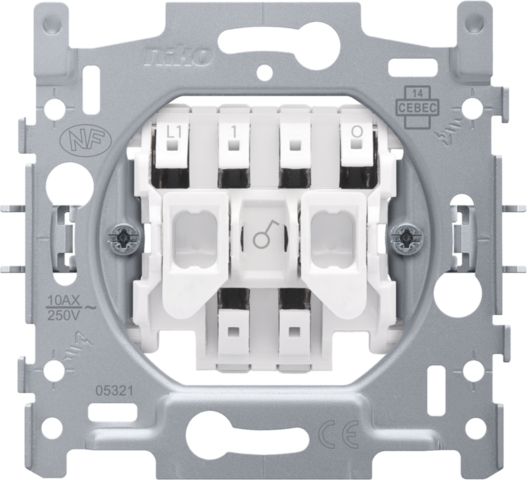

Base for single-pole control switch with 3 connection terminals, 10 AX/250 Vac, plug-in terminals

Reference code
170-07105
Technical datasheets
Inspection certificates
Certificaten CE-Marking

Description

Mechanism for a single-pole control switch, with 3 connection terminals, with claw fixing. This switch can be equipped with an indicator lamp (available as accessory) which indicates whether the light is switched on or not. A finishing set and faceplate in the colour of your choice must be ordered separately.

Specification description

Base for single-pole control switch with 3 connection terminals, 10 AX/250 Vac, plug-in terminals.

  • Number of control buttons: 1 push- button + LED
  • Maximum MCB rating: 16 A (limited by national installation rules)
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • SBL load: 100 W
  • Material base
    • ureumformaldehyde (UF) with high heat resistance
    • white RAL9010 (approximately)
  • Flush-mounting frame
    • 1 mm-thick metal
    • galvanized on all sides after cutting, even on the cut edges
    • with 4 grooves with screw hole of 7 mm
    • with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm for mounting on panels
  • Required type of flush-mounting box
    • depth: min. 40 mm (cabling space included)
    • claw/screw fixing: 60 mm
    • inner diameter box: 60 mm
    • multiple boxes centre distance horizontal: 71 mm
    • multiple boxes centre distance vertical: 71 mm
    • multiple boxes centre distance vertical: 60 mm for Belgium and France
  • Fixing method
    • simple mounting in a flush-mounting box with grip surfaces
    • with claws that rotate open using screws with a combination screwhead (Pz1 or slot 1 x 5 mm), for mounting in a flush-mounting box with grip surfaces
    • engagement depth of claws: 31 mm
    • claws can be pushed back into their original position
    • claws can be easily pushed out using a screwdriver
  • Centre-to-centre distance
    • Simple and quick assembly of one or more mechanisms by the indication (chalk line, laser, etc.) of the centre of the flush-mounting frame
    • vertical coupling centre-to-centre distance 60 mm by sliding several bases into each other, they lock themselves automatically
    • vertical coupling centre-to-centre distance 71 mm using pre-formed lips at the bottom, by folding the lips downwards over a length of 1 mm, the bases support each other and the centre-to-centre distance is guaranteed.
    • horizontal connection of multiple bases is quick and perfect thanks to the folded-up dovetails on the left and right sides
    • extra robustness due to the folded-up edges on the outside of the base and the continuation into the inside of the base
  • End border: 4 rectangular openings (7 x 2.5 mm) which, if the flush-mounting box protrudes from the plasterwork, can compensate for a margin of between 1 and 1.2 mm, so that the faceplate can still butt up perfectly against the wall
  • Wire connection
    • contact buses fitted with plug-in terminals for clamping the wires
  • Stripping length
    • 12 mm stripping length
    • indelibly indicated at the rear side: stripping length and wiring diagram
    • indelibly indicated at the front side: terminals and switch symbol
  • Lighting element
    • the base is provided with 2 rectangular recesses for a lighting unit
    • left recess (front view): a lighting unit with wires can be clicked in
  • Ambient temperature: -5 – +40 °C
  • Dimensions (HxWxD): 71 x 73 mm
  • Certification marks: CEBEC, NF
  • Marking: CE
