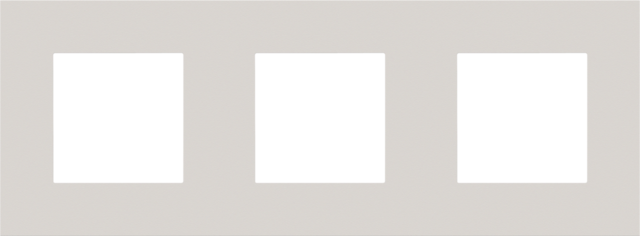

Threefold faceplate, 71 mm centre distance, Niko Pure natural soft grey

Reference code
159-76700

No longer available since February 2023

Description

Threefold faceplate with 71 mm centre-to-centre distance from the range Niko Pure. Niko Pure natural soft grey

Specification description

Threefold faceplate, 71 mm centre distance, Niko Pure natural soft grey.

  • Threefold faceplate for three switches.
  • Colour: natural soft grey (approximately NCS S 2005 - Y10R, RAL 090 80 10)
  • Frame composition: It consists of an upper frame and lower frame that are mechanically interconnected.
  • Material upper frame: The upper frame is made of marmoleum.
  • Material lower frame: The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA).
  • Frame thickness: The upper frame is 2 mm thick and the lower fame 6 mm.
  • Precautions: It is best not to place this faceplate in rooms that are continually damp (e.g. pools, saunas).
  • Centre-to-centre distance: 71 mm
  • Surface-mounting height: max. 8.5 mm
  • Fire safety
    • the complete faceplate is halogen-free.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Dimensions (HxWxD): 83 x 225 x 8.9 mm
  • Certification marks: CEBEC, KEMA, NF, VDE, ÖVE, SEMKO
  • Marking: CE
