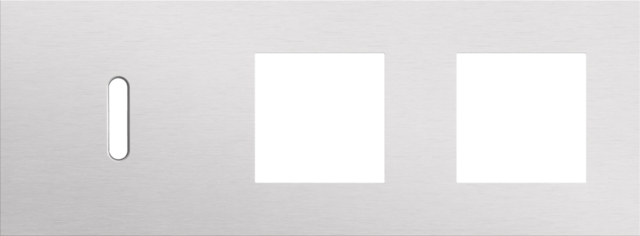

Threefold faceplate, horizontal 71 mm centre distance, for a single switch and two 45x45 functions, Niko Rocker alu grey brushed

The Niko Rocker threefold horizontally oriented faceplate clicks onto a single switch and two 45 x 45 mm functions that have been horizontally installed next to each other with a centre distance of 71 mm. The faceplate combines with any available Niko Rocker for single switch functions and Niko 45 x 45 mm finishing set. It consists of an upper frame, light guide and lower frame that are mechanically interconnected. The upper frame is made of brushed aluminium. The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA). The upper frame is 6 mm thick and the lower frame 2 mm.

Niko recommends a design combination with a finishing set in the following colour: alu grey.

Threefold faceplate, horizontal 71 mm centre distance, for a single switch and two 45x45 functions, Niko Rocker alu grey brushed.

• Colour: alu grey (approximately NCS S 2002 - G, RAL 000 80 00)
• Recommended colour central plate: alu grey
• Frame composition: It consists of an upper frame, light guide and lower frame that are mechanically interconnected.
• Material upper frame: The upper frame is made of brushed aluminium.
• Material lower frame: The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA).
• Frame thickness: The upper frame is 6 mm thick and the lower frame 2 mm.
• Centre-to-centre distance: 71 mm
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Dimensions (HxWxD): 83 x 225 x 13 mm
• Dimensions visible (HxWxD): 83 x 225 mm
• Marking: CE
