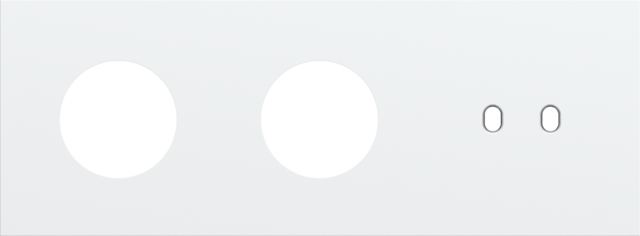

Threefold faceplate, horizontal 71 mm centre distance, for two socket outlets and a double switch function, Niko Toggle steel white coated

The Niko Toggle threefold horizontally oriented faceplateclicks onto two socket outlets and a double switch function that have been vertically installed on top of each other with a centre distance of 71 mm. The faceplate combines with any available Niko Rocker and Niko Toggle socket outlet finishing set and a Niko Toggle double switch function. The faceplate combines with any available Niko Rocker and Niko Toggle socket outlet finishing set and a Niko Toggle double switch function. It consists of an upper frame, light guide and lower frame that are mechanically interconnected. The upper frame is made of steel. The lower frame is made of white polycarbonate (PC) + acrylic-styrene-acrylate (ASA), white coated. The upper frame is 2 mm thick and the lower fame 6 mm.

Niko recommends a design combination with a finishing set in the following colour: steel white coated.

Threefold faceplate, horizontal 71 mm centre distance, for two socket outlets and a double switch function, Niko Toggle steel white coated.

• Threefold faceplate for three switches.
• Colour: enamelled steel white (approximately NCS S 1002 - B50G, RAL 000 90 00)
• Recommended colour central plate: steel white coated
• Frame composition: It consists of an upper frame, light guide and lower frame that are mechanically interconnected.
• Material upper frame: The upper frame is made of steel.
• Material lower frame: The lower frame is made of white polycarbonate (PC) + acrylic-styrene-acrylate (ASA), white coated.
• Varnish upper frame: The upper frame is enamelled white.
• Frame thickness: The upper frame is 2 mm thick and the lower fame 6 mm.
• Lighting element
  • the faceplate is fitted with a light guide
  • the light guide is made of a translucid plastic
  • the light guide transports the light from the optional LED to the lever
  • please note that the faceplate should not be mounted upside down to ensure that the optional LED fits nicely with the light guide
• Centre-to-centre distance: 71 mm
• Surface-mounting height: max. 8.5 mm
• Fire safety
  • self-extinguishing: complies with a filament test of 650°C
  • halogen-free
• Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP21D
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Dimensions (HxWxD): 83 x 225 x 13 mm
• Dimensions visible (HxWxD): 83 x 225 mm
• Certification marks: CEBEC, NF
• Marking: CE
